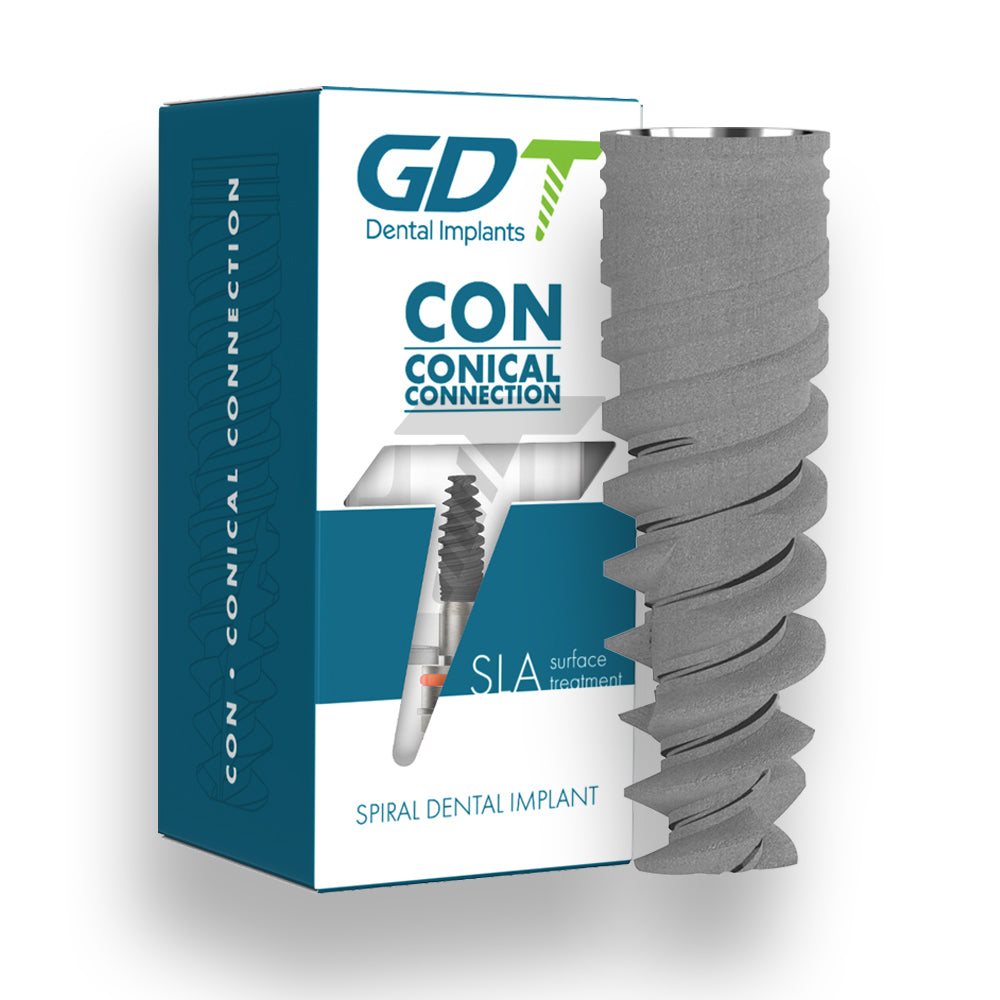

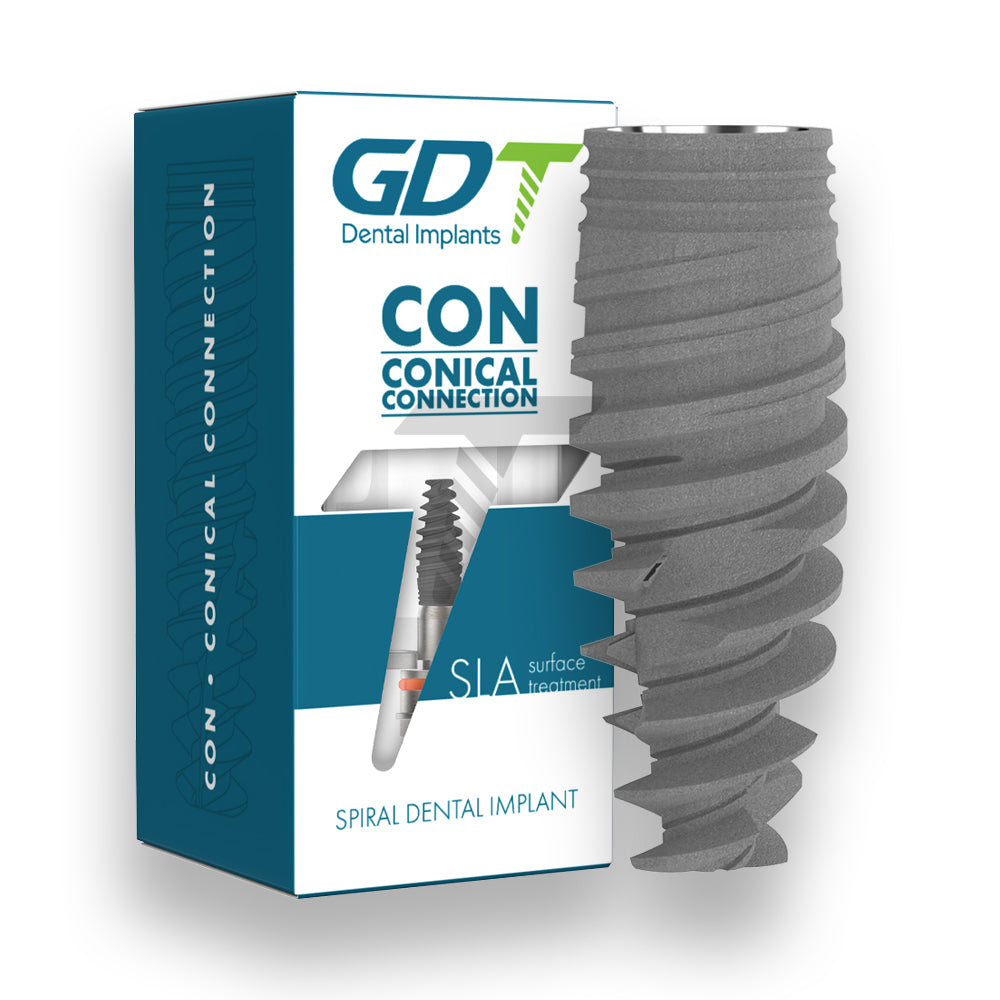

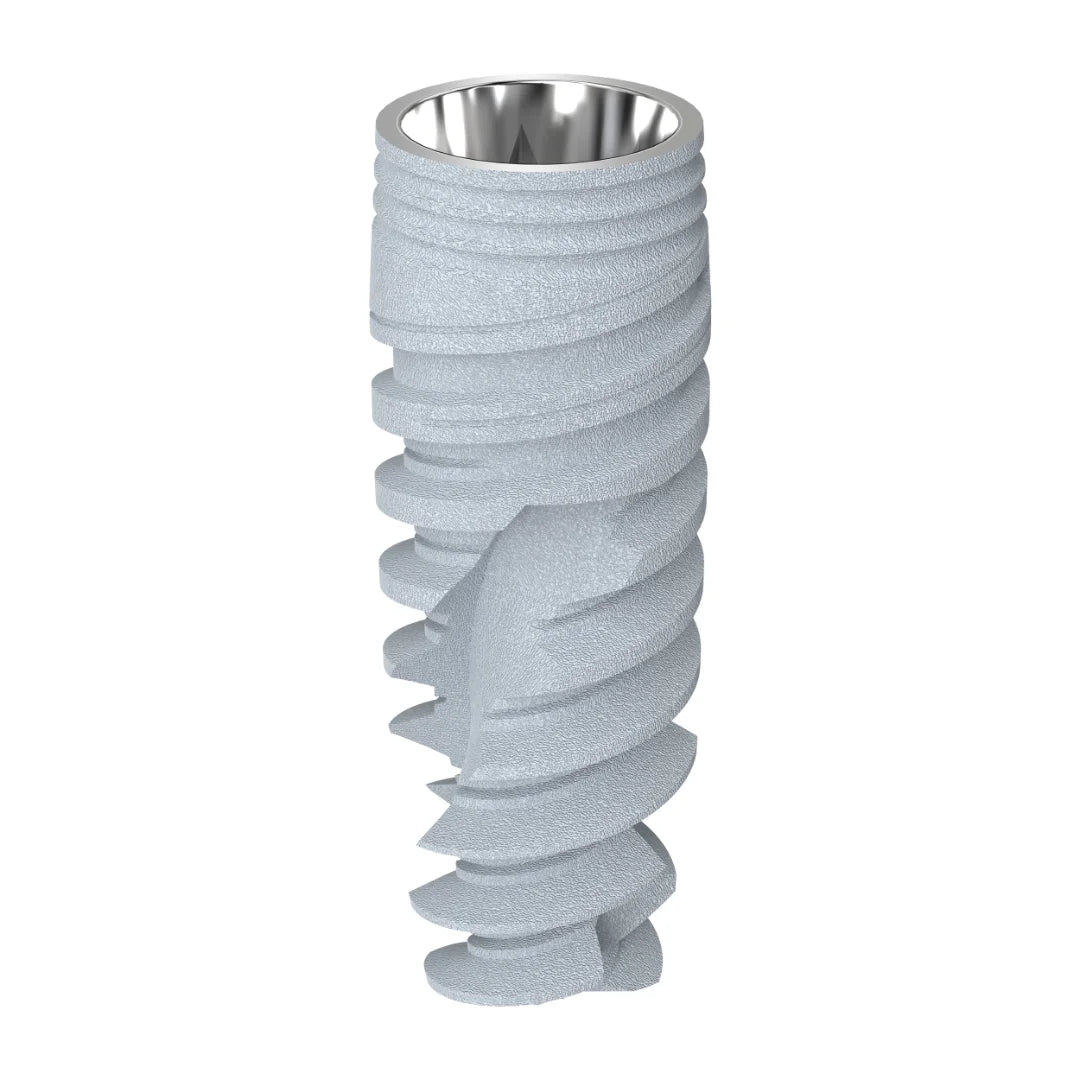

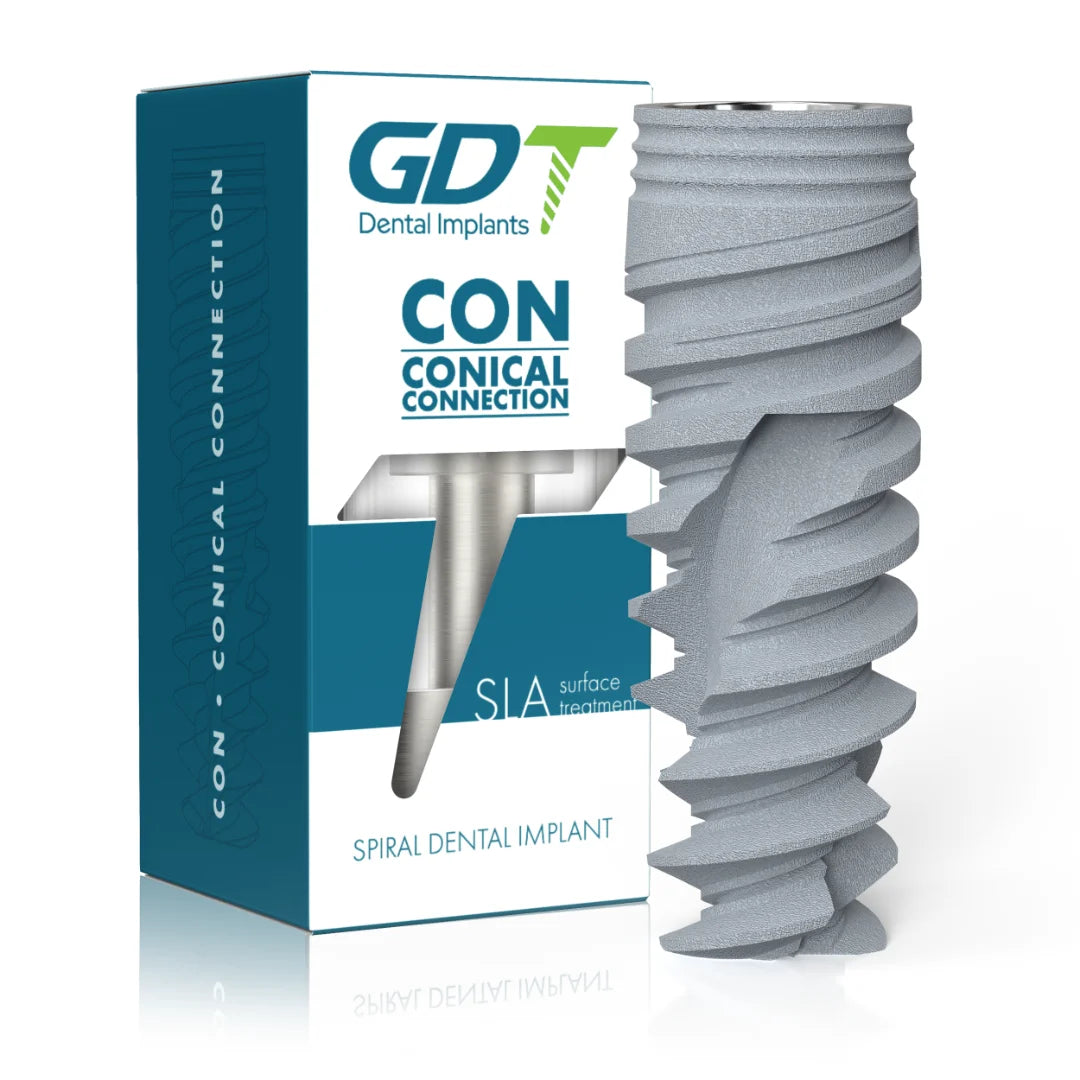

GDT CON Spiral Implant - Conical Connection

The GDT CON Spiral Implant is a high-precision implant system designed for exceptional primary stability, immediate loading, and long-term osseointegration. Manufactured from Titanium Grade 5 (Ti-6Al-4V ELI) and treated with a micro-rough SLA surface, it ensures optimal bone response and accelerated healing.

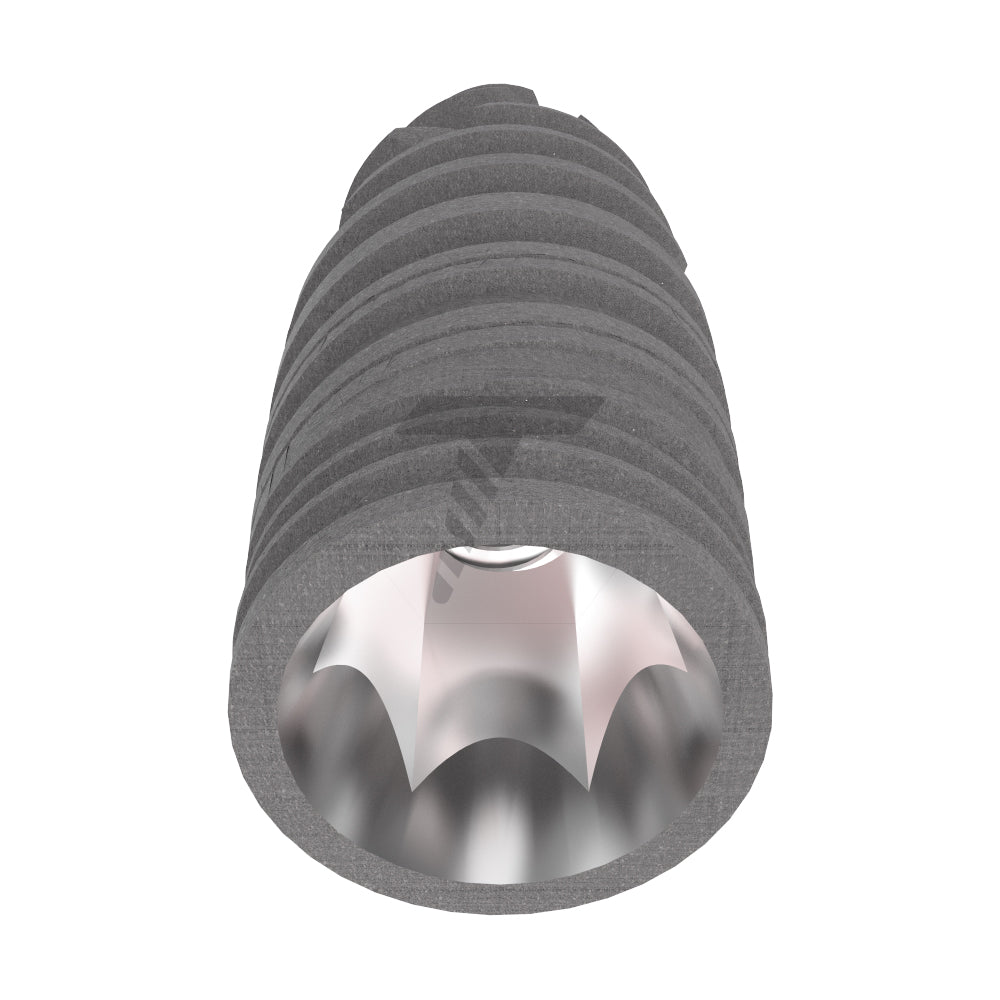

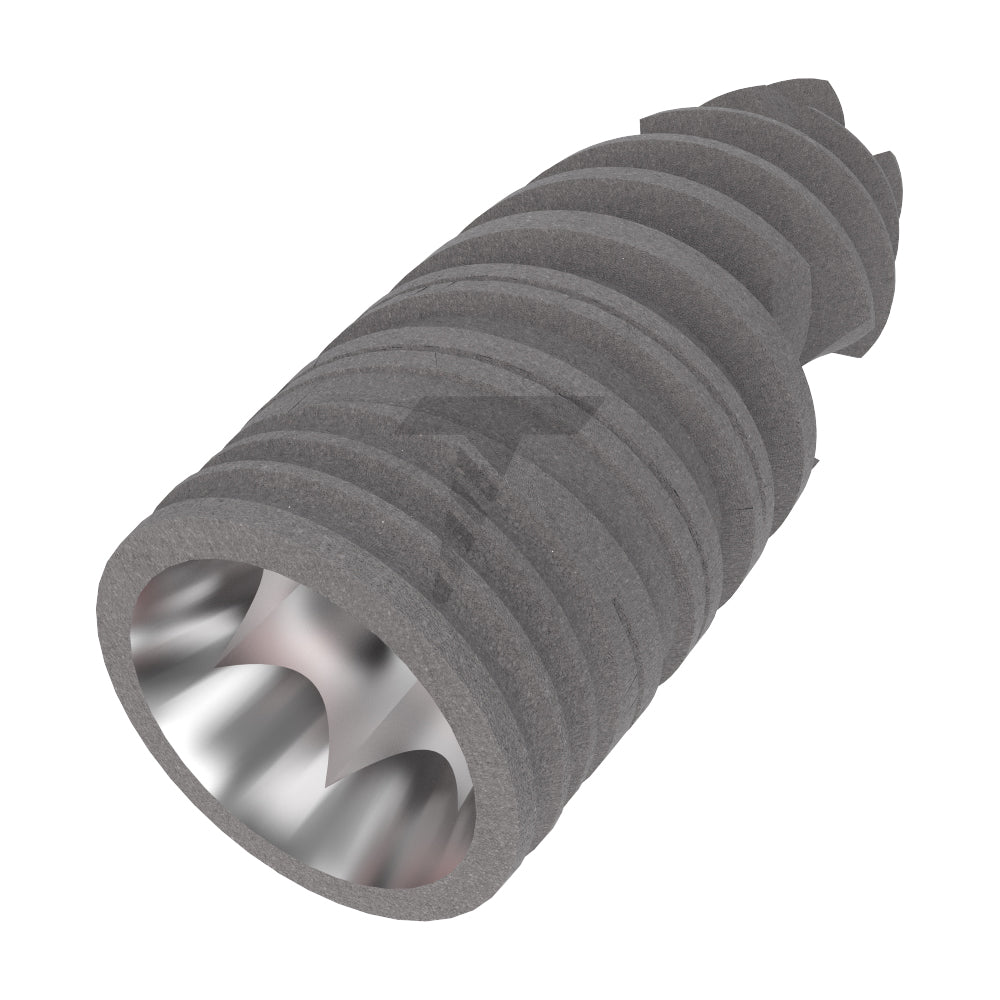

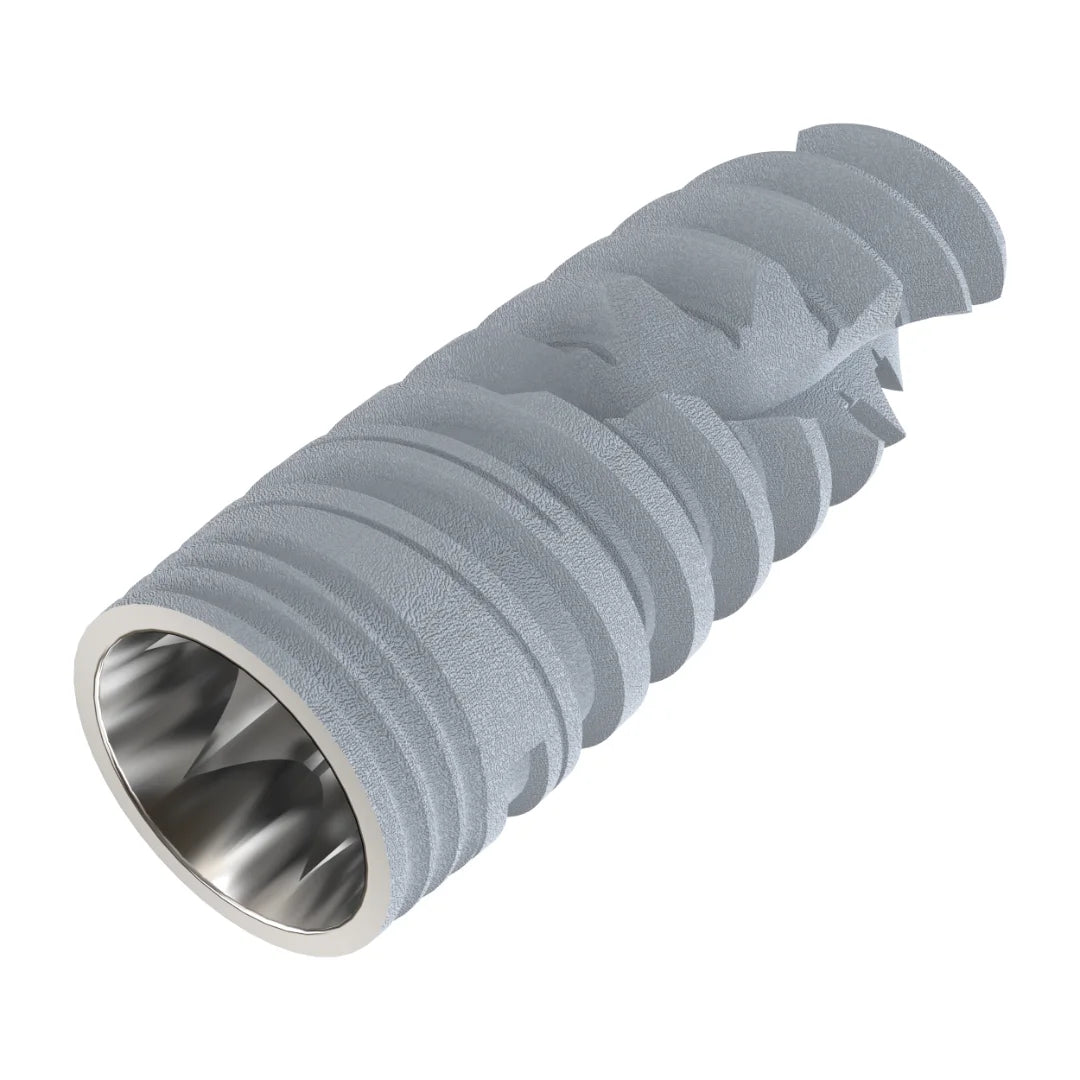

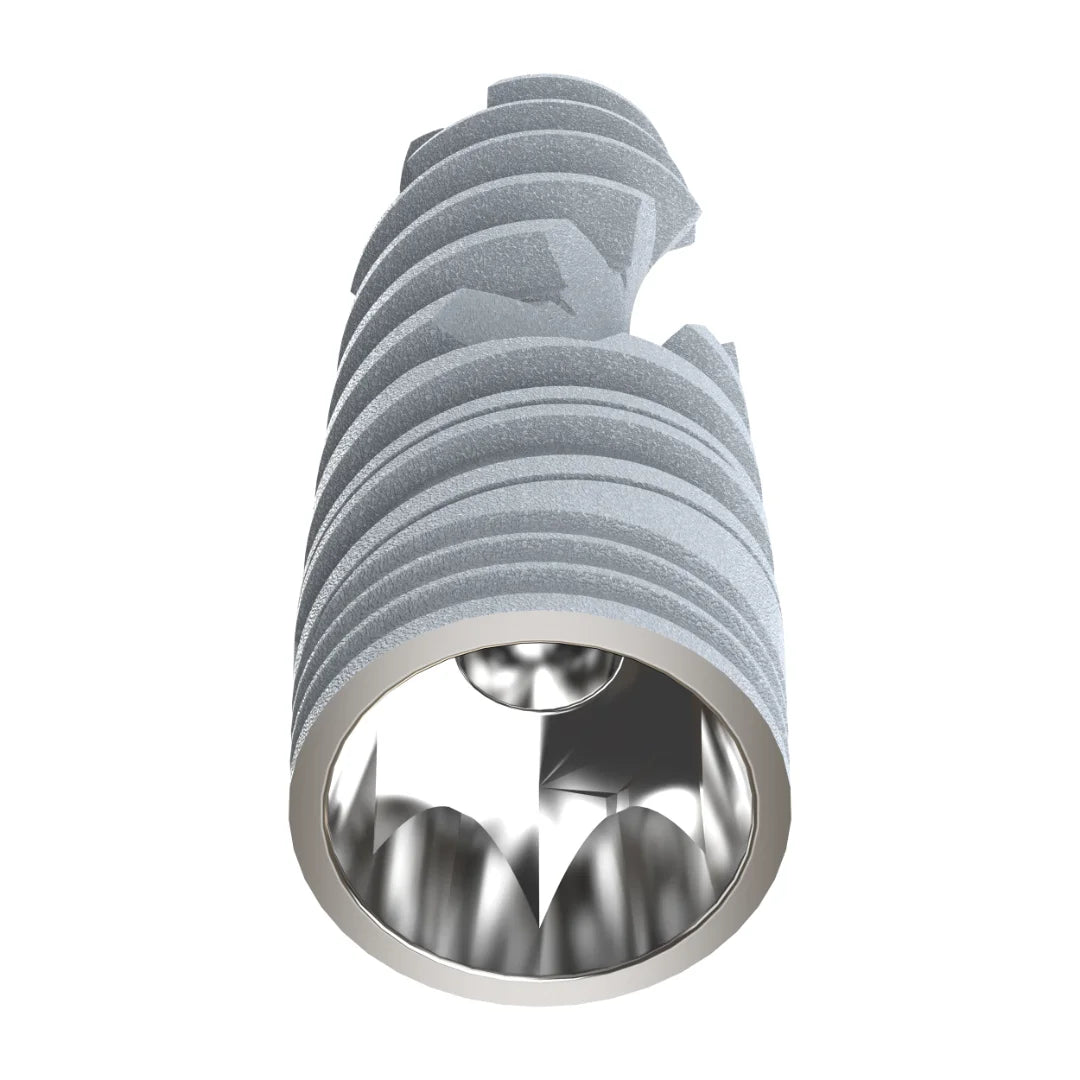

Available in two platforms, Narrow Platform (NP) with a 2.25 mm internal hex and Regular Platform (RP) with a 2.65 mm internal hex, the CON Spiral Implant features a tight-seal conical connection with interlocking hex geometry, providing a secure abutment fit that minimizes micro-movement and bacterial infiltration.

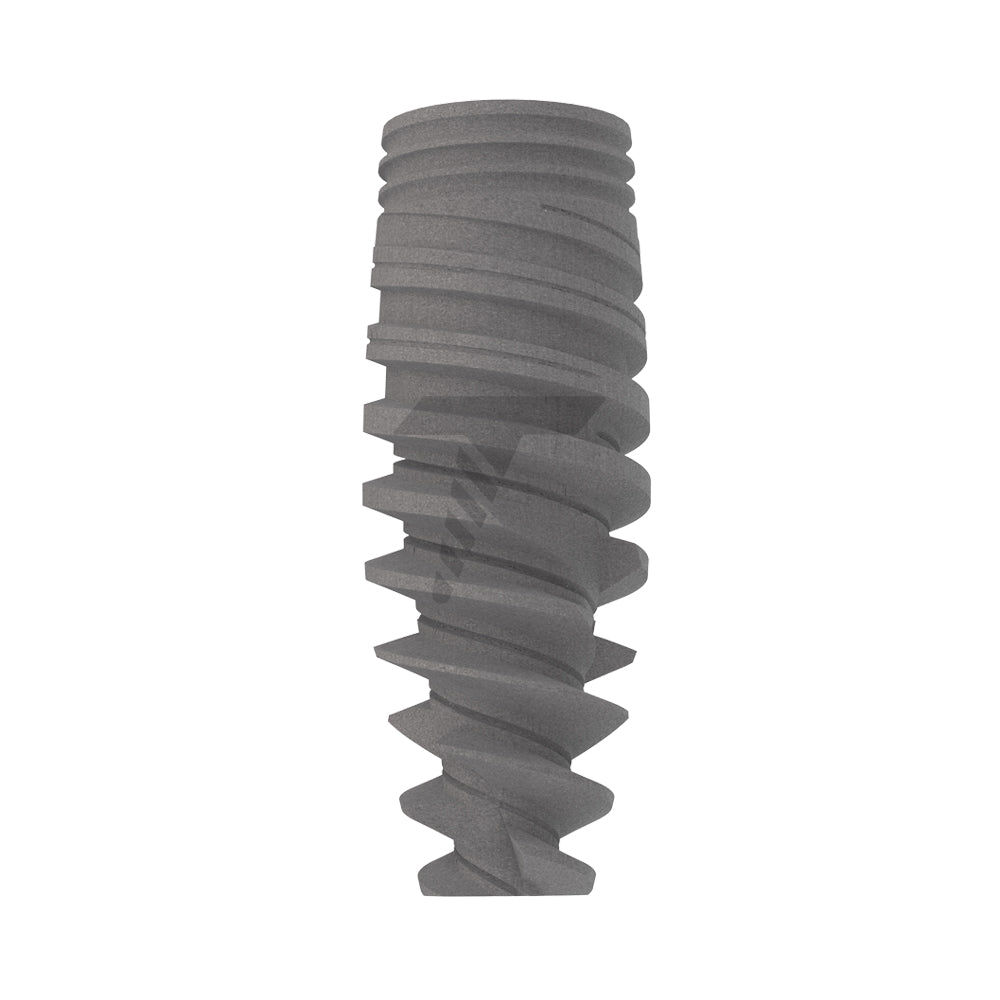

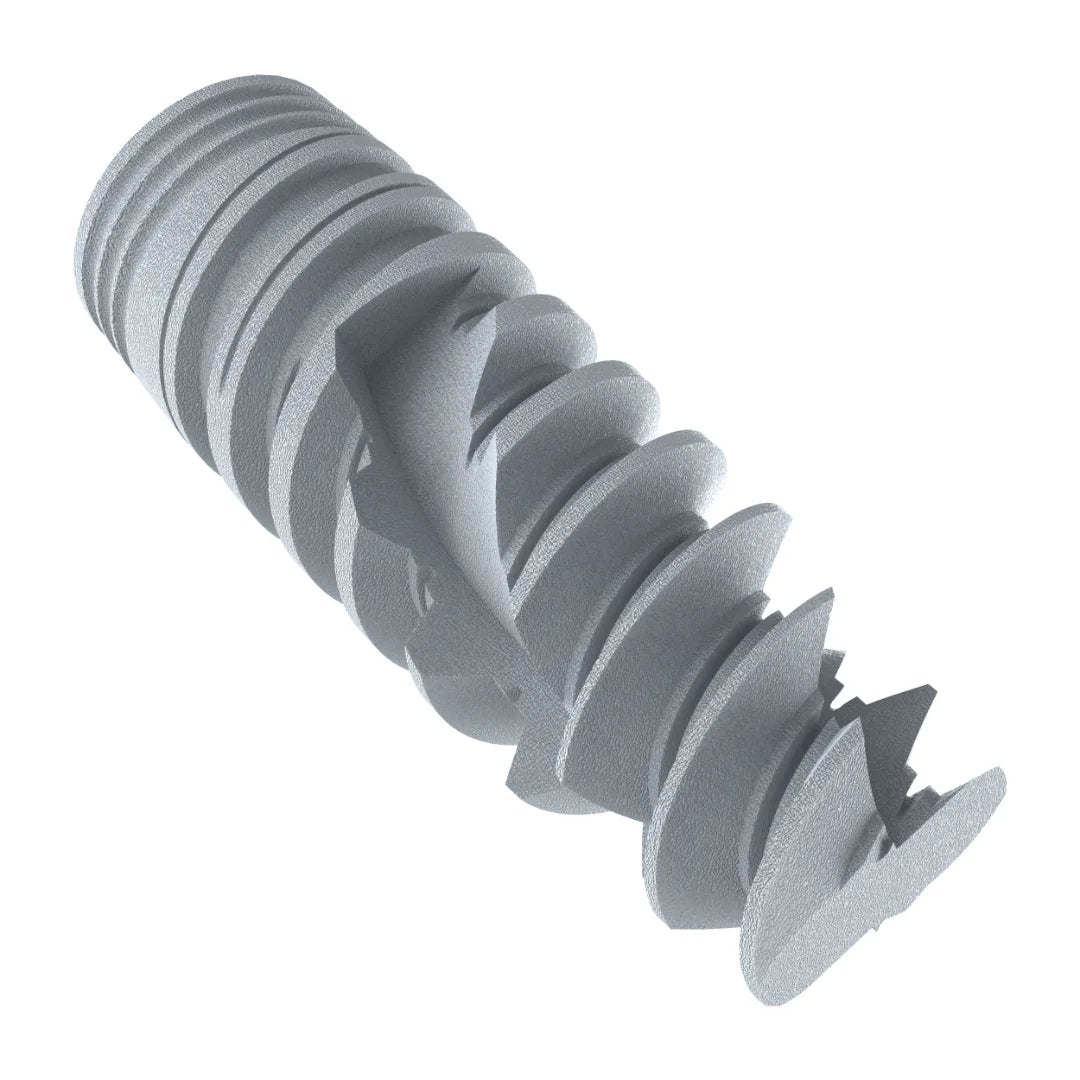

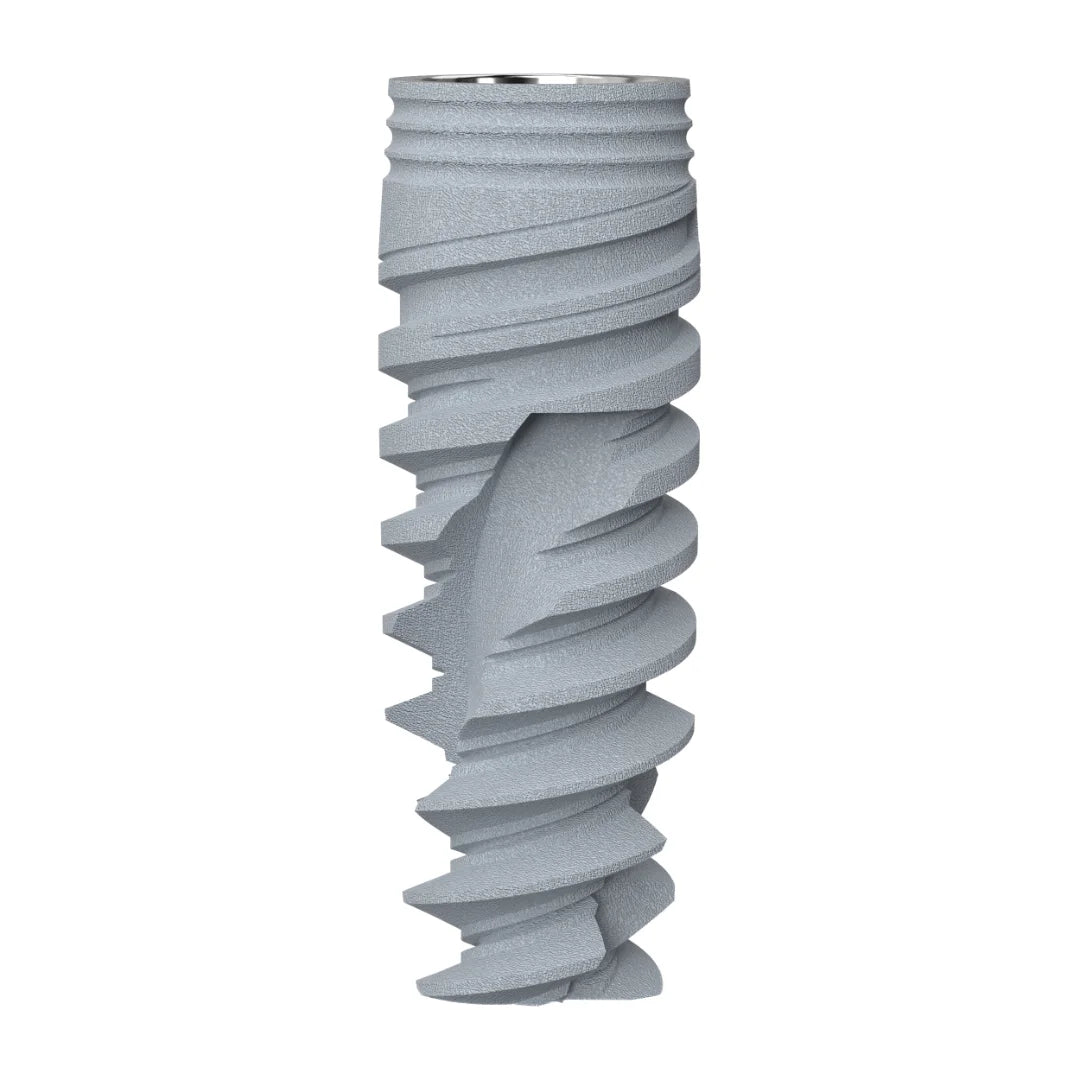

Its tapered body design, reverse-cutting flutes, and self-drilling, self-tapping threads enable smooth insertion with minimal trauma while achieving excellent bone compression and stability even in soft bone or extraction sites.

• Material Composition: Titanium Alloy Grade 5 (Ti-6Al-4V ELI)
• Connection Type: Conical Connection Hex
• Surface Treatment: SLA, Sandblasted and Acid Etched
• Available Platforms: Narrow Platform (NP), Regular Platform (RP)
• Available Diameters: 3.5 mm (NP), 4.3 mm (RP), 5.0 mm (RP)
• Available Lengths: 8.0 mm, 10.0 mm, 11.5 mm, 13.0 mm, 16.0 mm
• Manufacturing Origin: Israel

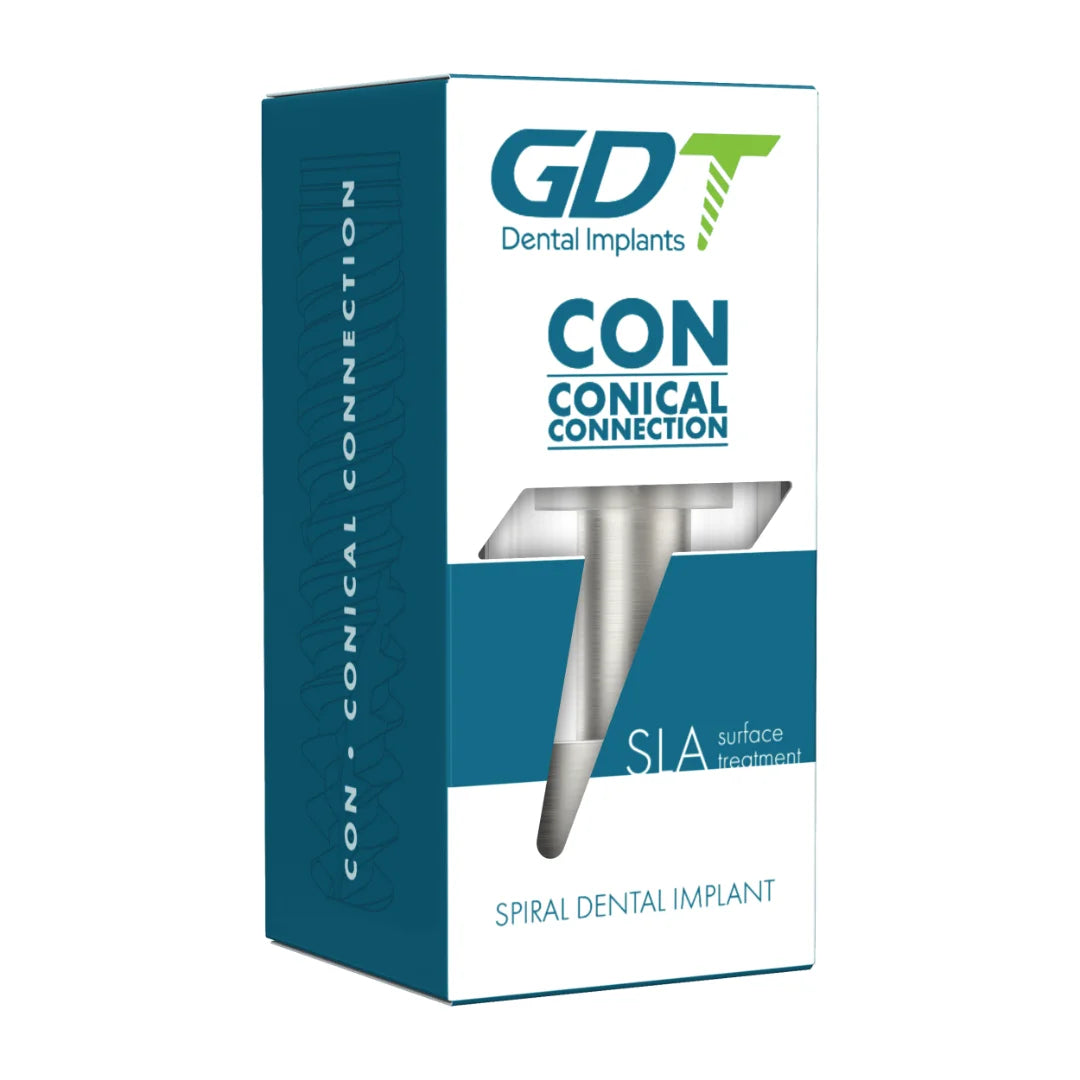

• Condition: Sterilized, double-packaged

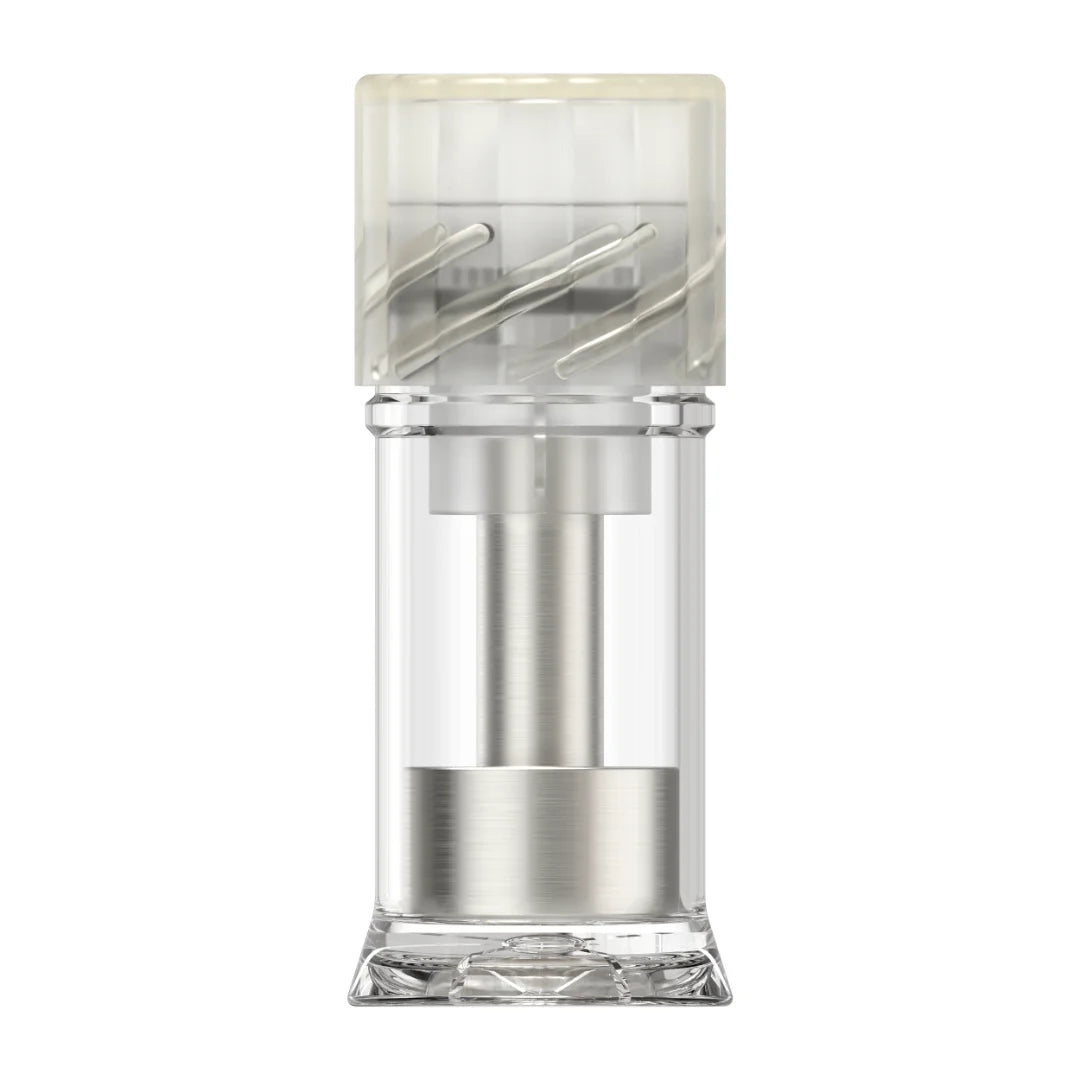

Mountless Packaging

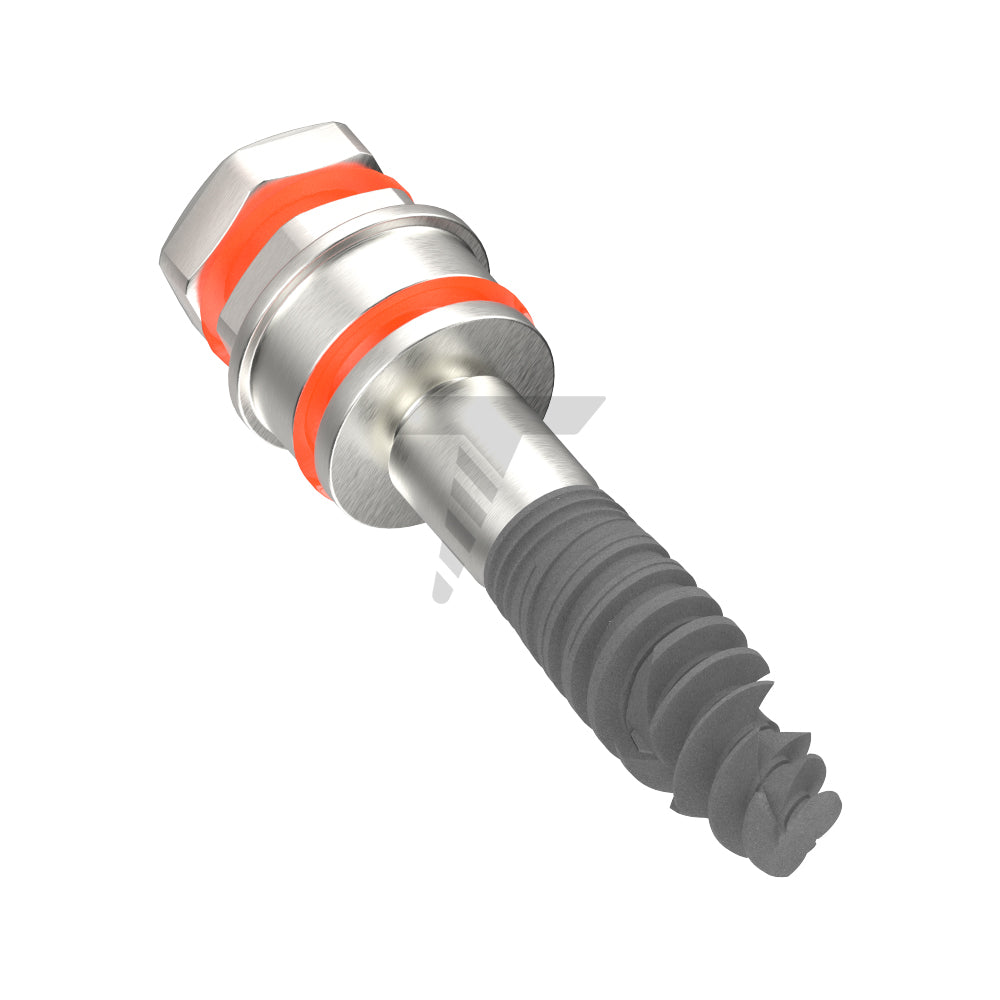

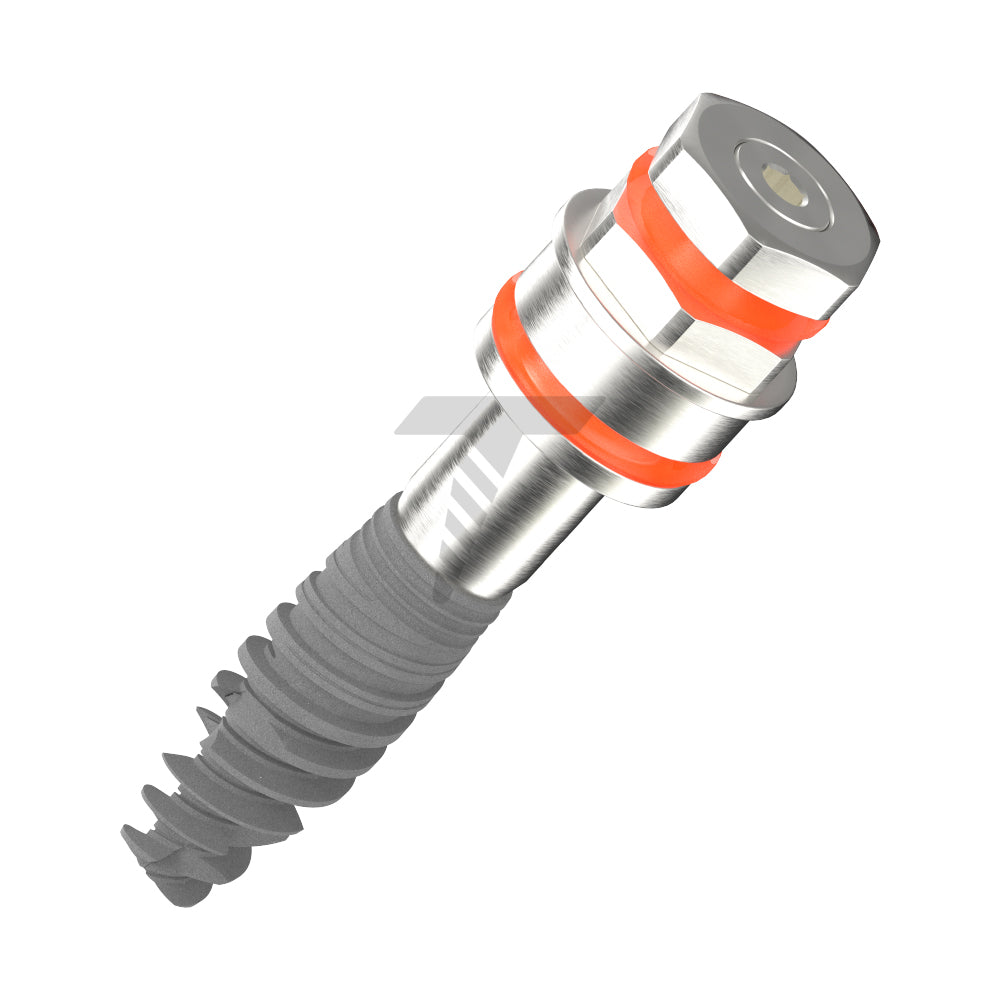

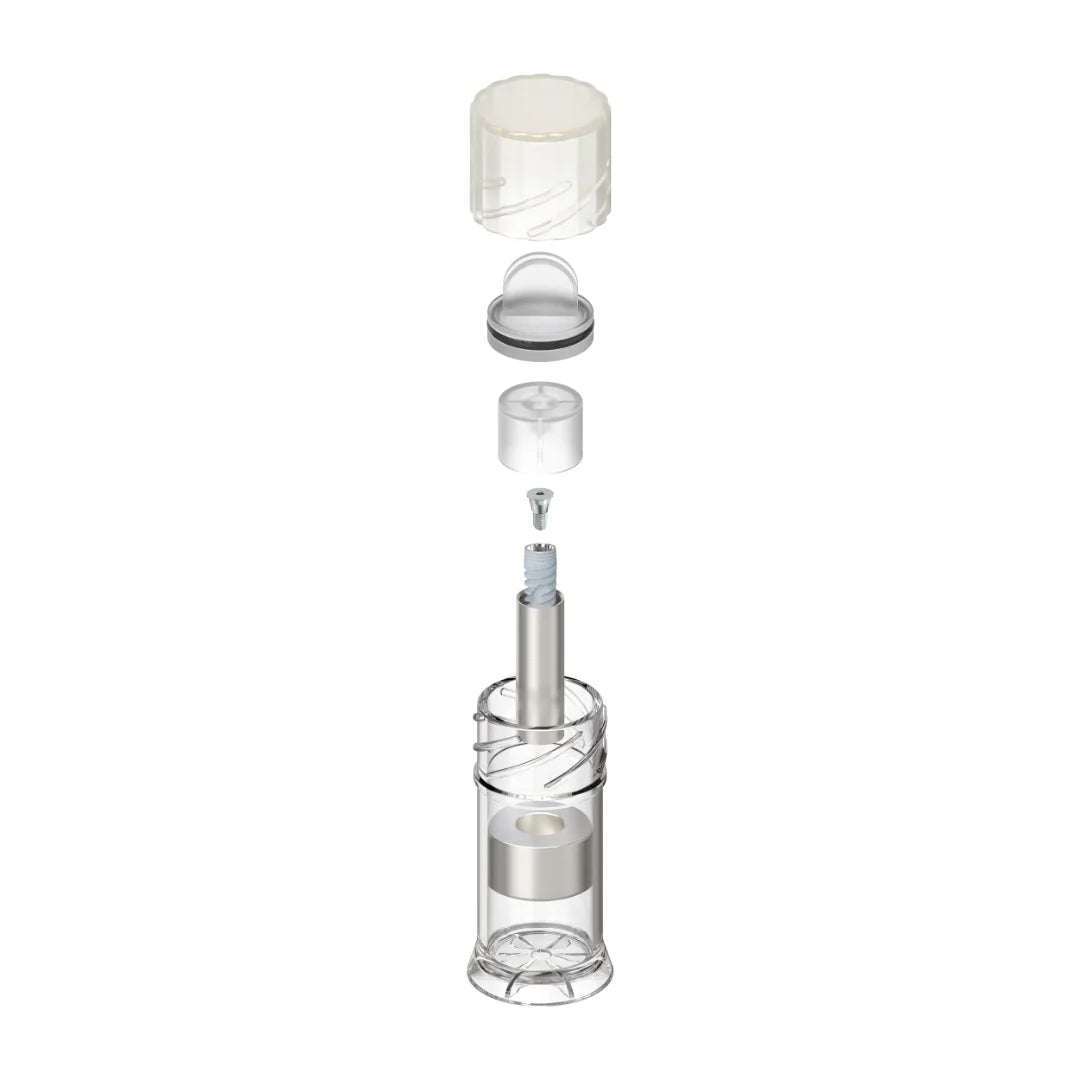

The mountless packaging is designed for quick and straightforward driver insertion with a friction-fit mechanism, enabling secure pick-up from the package to the implantation site. Inside the package, the implant is stabilized within a sterile titanium tube for safe retrieval, installation, and subsequent restoration. For smooth and controlled placement, we recommend using the GDT Advanced Grip Driver. Once the implant is placed, the driver can be easily removed.

CON Spiral Implant Highlights

• Conical Connection: Secure Conical-Hex design minimizes micro-gaps and micromovement. Reduces the risk of bacterial leakage, ensuring a tight, long-lasting seal. Provides excellent load distribution for predictable prosthetic success.
• Optimized Spiral Design: Self-drilling tapered body delivers exceptional primary stability even in soft bone. Sharp, deep threads enhance mechanical anchorage and allow for immediate or early loading. Ideal for flapless and minimally invasive procedures, reducing surgical time and promoting faster healing.
• Clinical Applications & Benefits: Suitable for immediate loading protocols. Compatible with a wide range of surgical techniques, including two-stage procedures and flapless approaches. Designed for challenging cases such as narrow ridges and low-density bone without the need for prior bone grafting. Sterilized and double-packaged to guarantee product integrity and patient safety.
• Titanium Grade 5 material: Manufactured from Titanium Grade 5, Ti-6Al-4V ELI, a titanium alloy known for high strength, corrosion resistance, and biocompatibility. The ELI composition supports improved ductility and fracture toughness, making it suitable for durable dental implant manufacturing.

• SLA surface treatment: Sandblasted, large grit, acid etched surface designed to create both macro and micro roughness. This surface structure increases bone to implant contact, supports osteoblast attachment and proliferation, and helps promote predictable osseointegration for long term implant stability.

GDT Supply USA ensures the quality and reliability of every product. All dental implants are protected by a lifetime warranty, and all implant prosthetic components by a 10-year warranty. Each product is traceable by reference and batch number.
