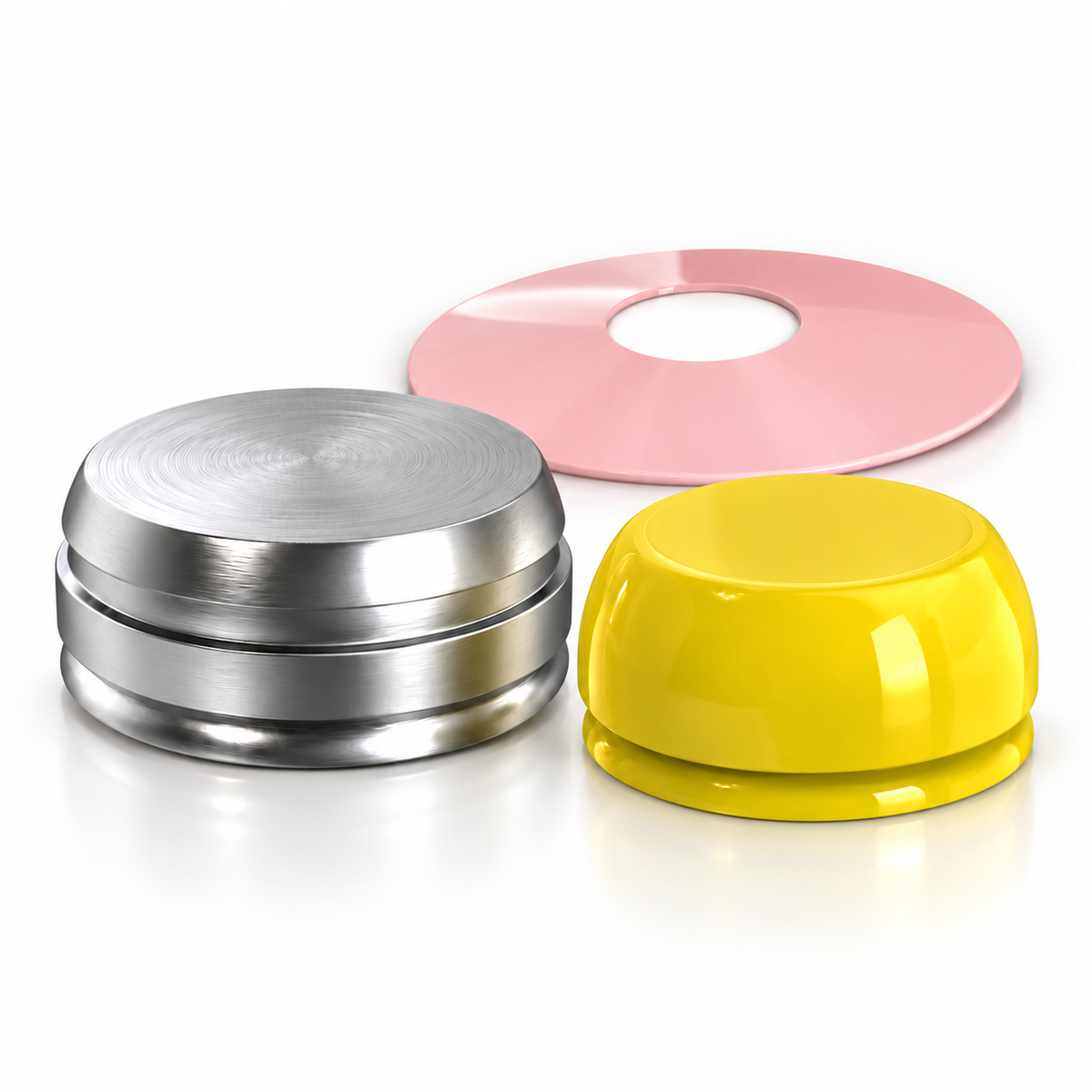

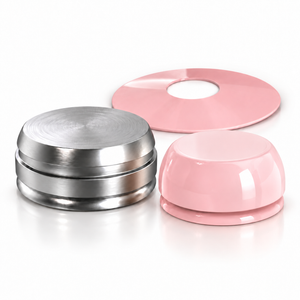

Angulated 30° Click Attachment Set – Narrow Platform Conical Connection

The 30° Angled Click Attachment Narrow Platform Set is designed for overdenture restorations requiring a reliable locator-style retention solution while helping compensate for implant angulation. It is designed for Conical Connection Hex 2.25mm Narrow Platform (NP) implant systems and provides a precise, stable connection for overdenture restorations.

Manufactured from Titanium Grade 5 (Ti-6Al-4V ELI), the attachment provides excellent strength, durability, corrosion resistance, and biocompatibility. Its 30° angulated design provides additional restorative flexibility when implant positioning requires correction.

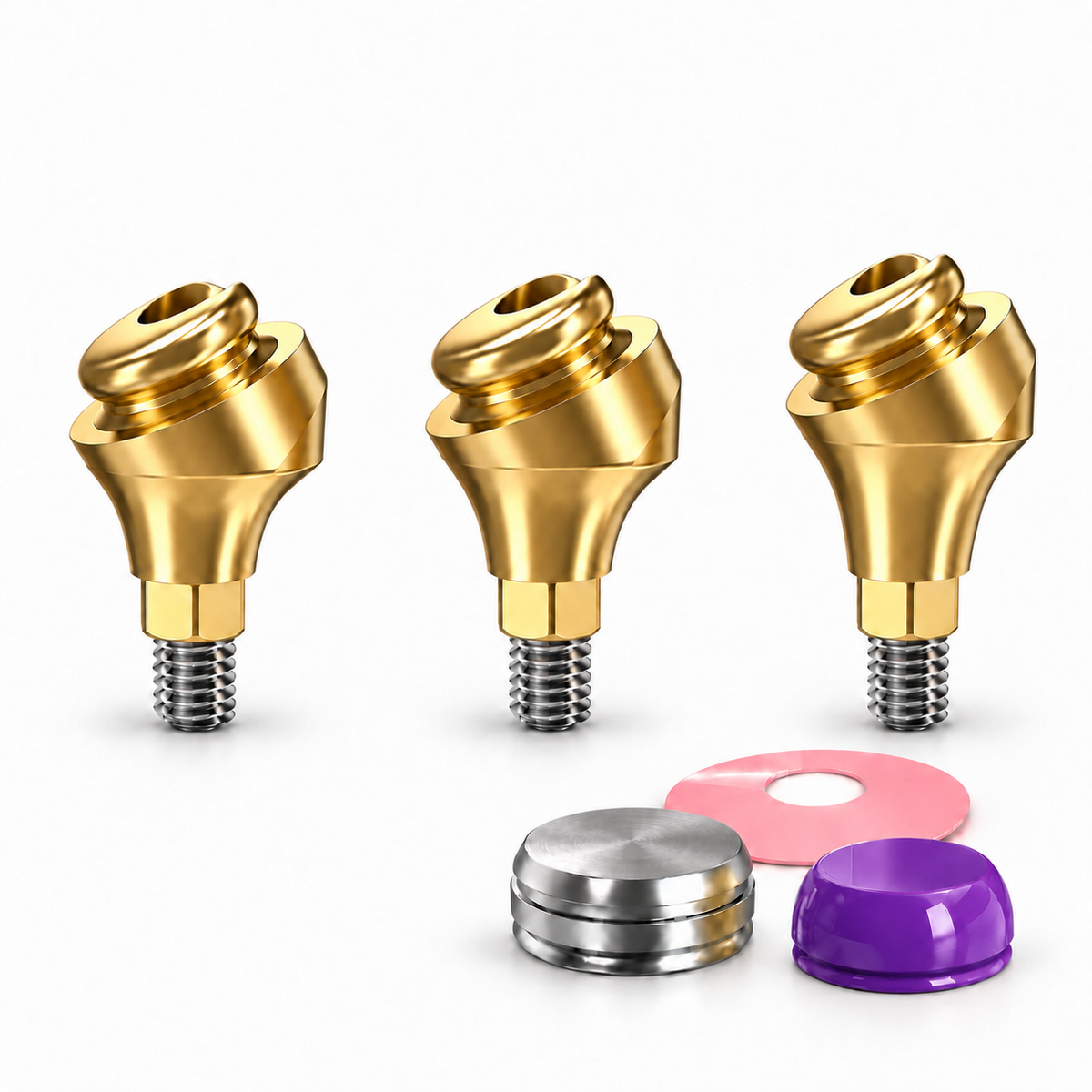

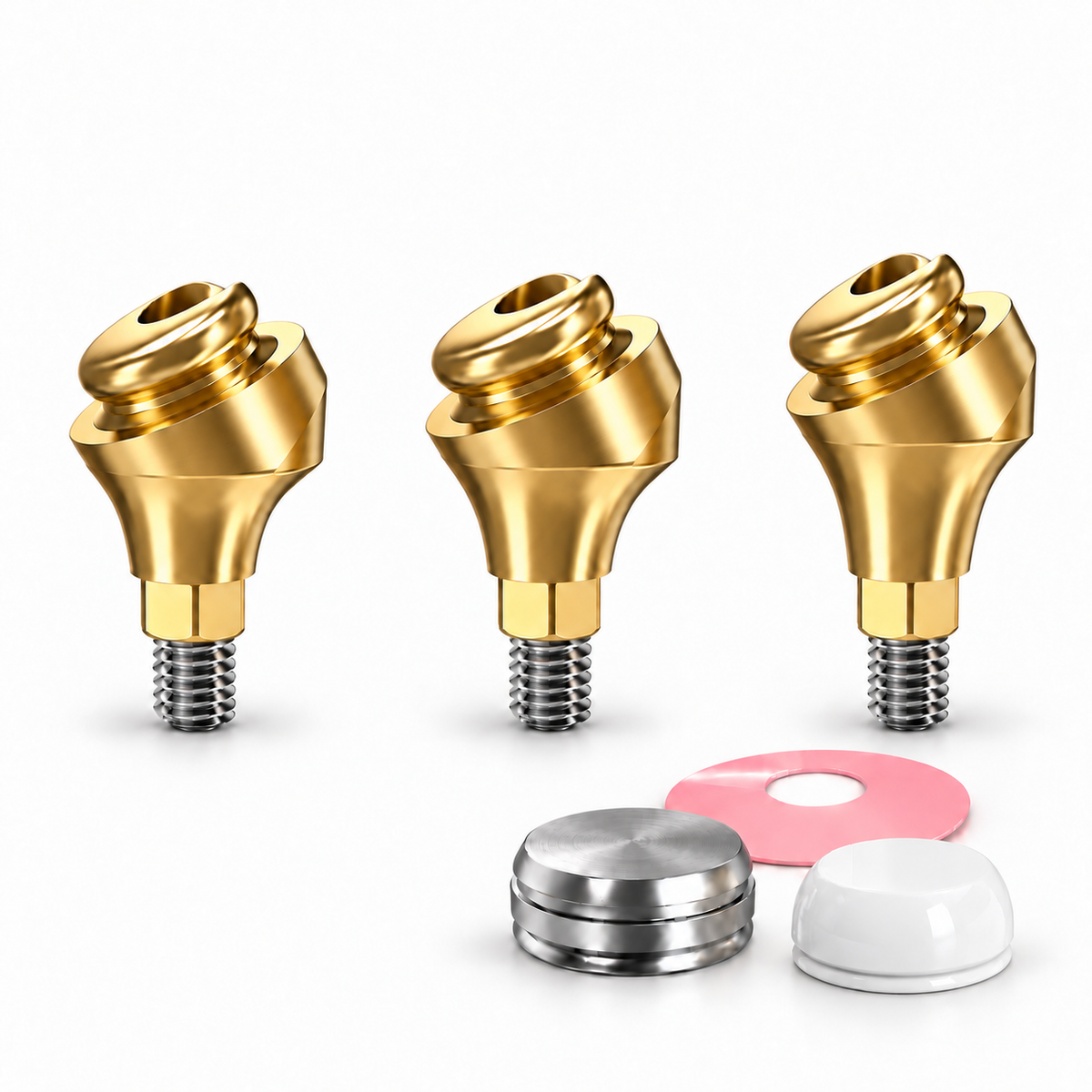

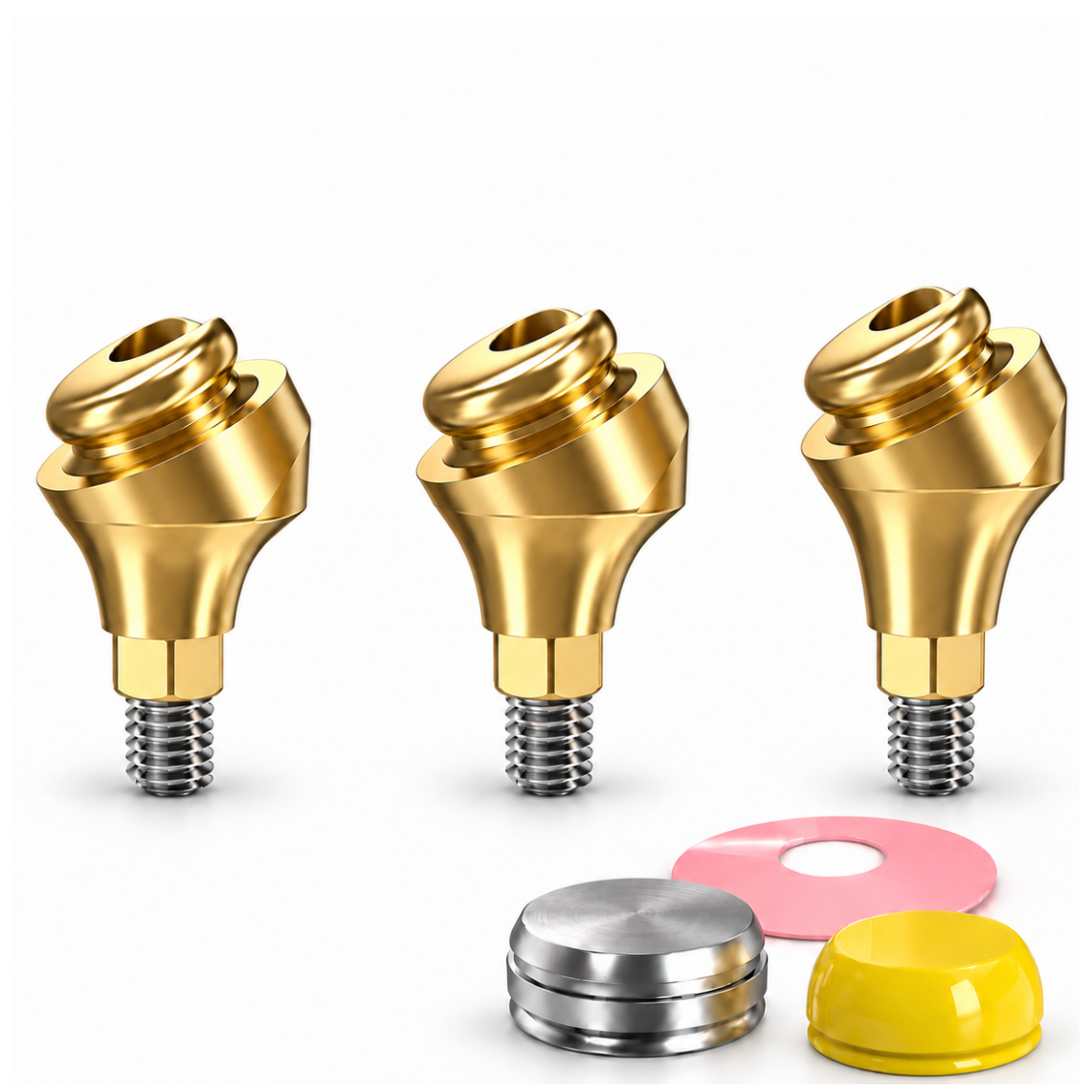

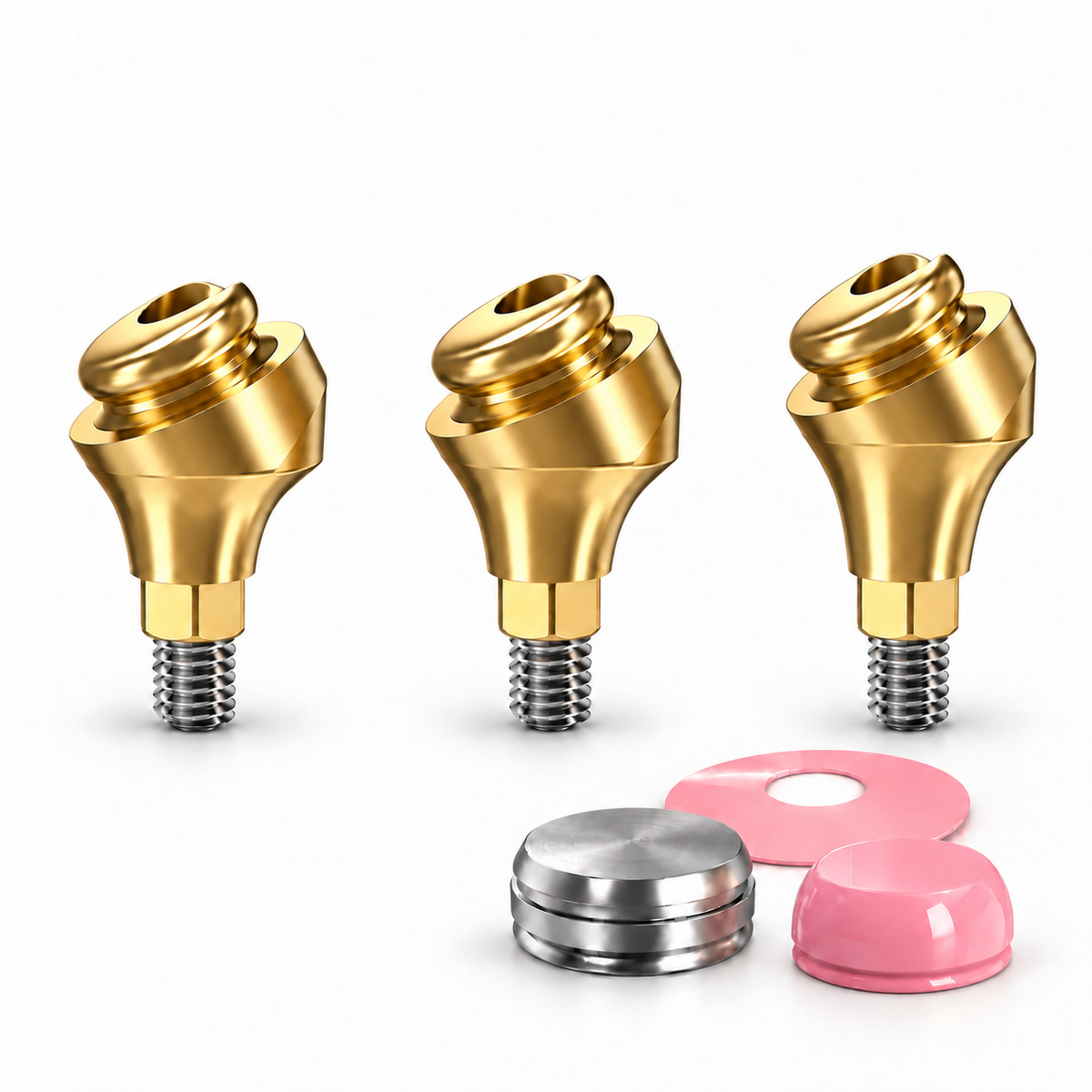

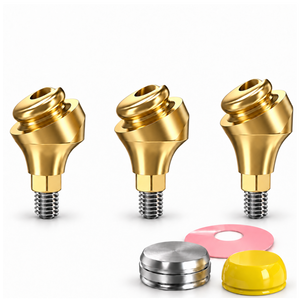

Each set includes an 30° Angled Click Attachment, Metal Housing, Titanium Fixation Screw, Protective Disc, and one Silicone Retentive Cap. Four retention options are available, allowing the appropriate retention level to be selected according to the restorative requirements: Extra Soft 600G, Soft 1200G, Standard 1800G, or Strong 2700G.

Product Specifications

• Connection Type: Conical Connection Hex 2.25mm
• Platform: Narrow Platform (NP)
• Attachment Diameter: Ø3.5mm
• Heights: 1.0mm, 2.0mm, 3.0mm
• Angle: 30°
• Retention Options: Extra Soft 600G, Soft 1200G, Standard 1800G, Strong 2700G
• Material: Titanium Grade 5 (Ti-6Al-4V ELI)
• Manufacturing Origin: Israel

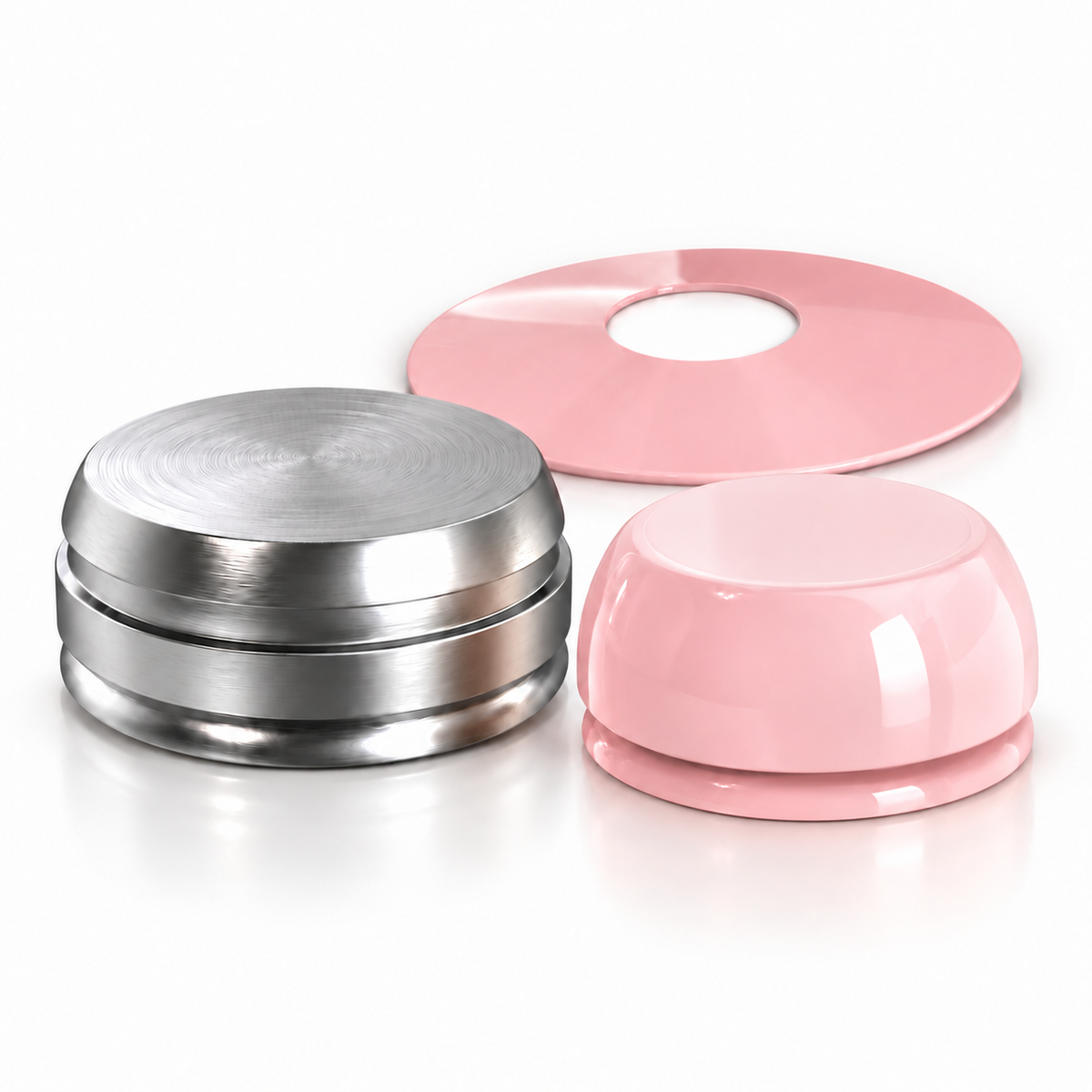

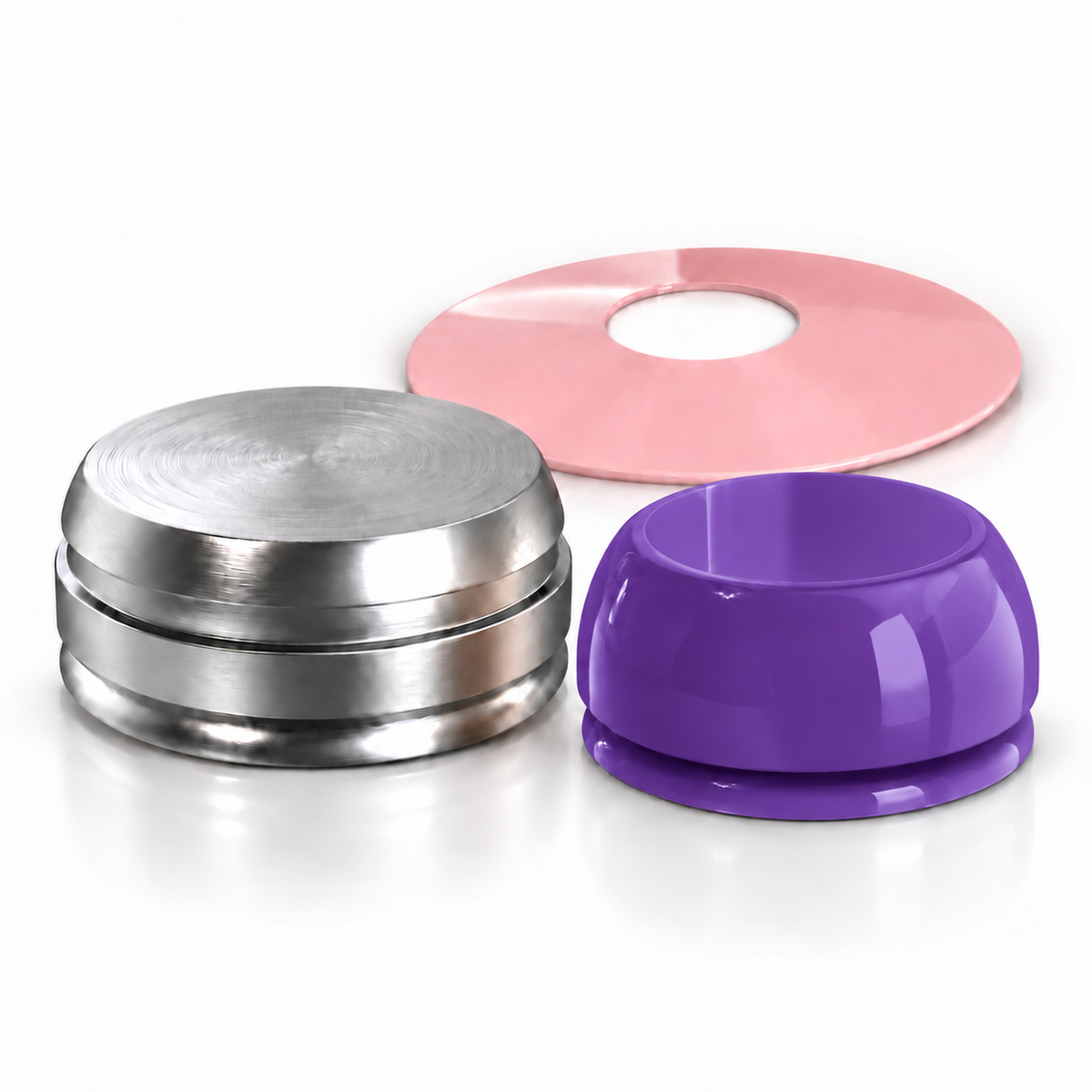

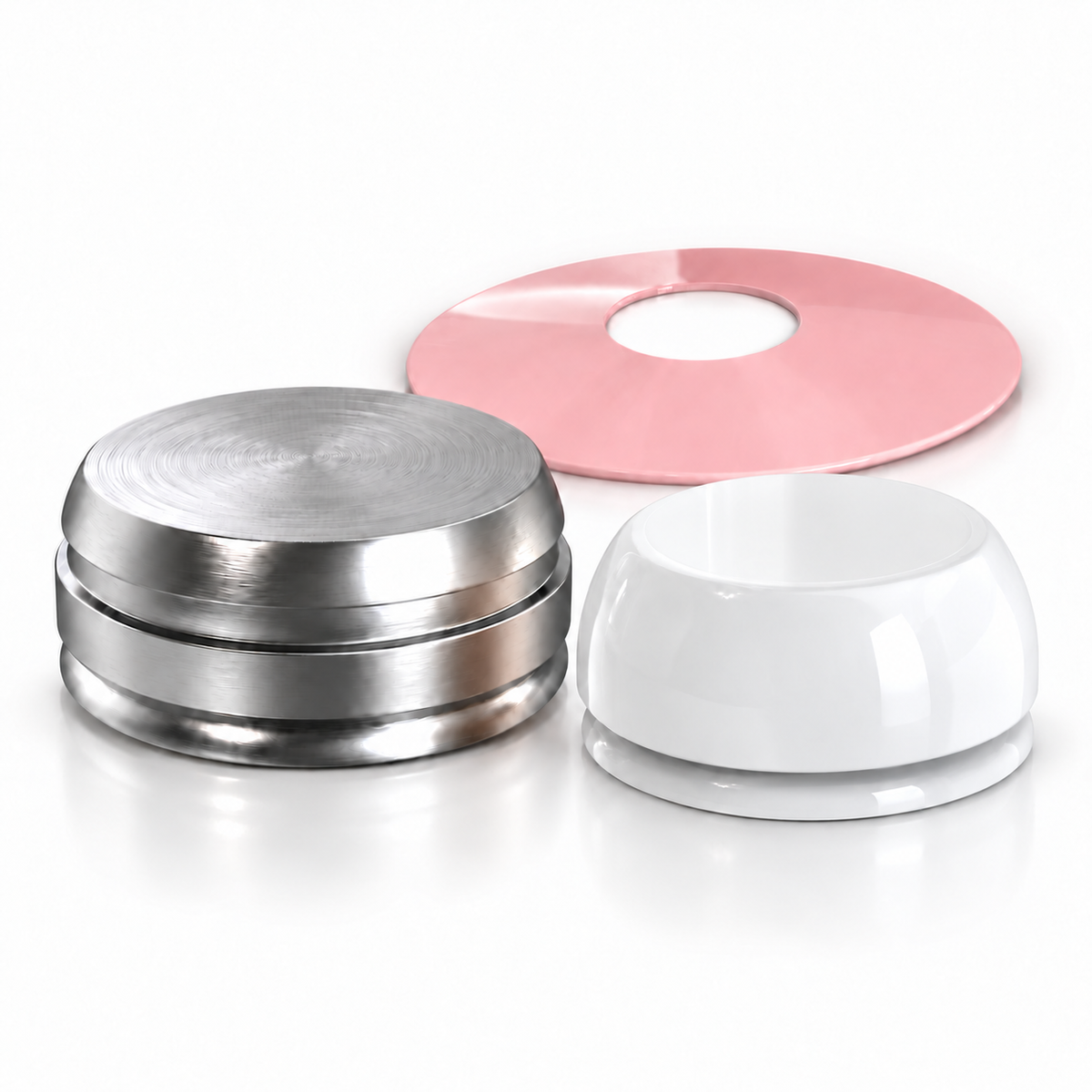

Package Includes

Each package includes:

• 1 30° Angled Click Attachment
• 1 Metal Housing
• 1 Titanium Fixation Screw
• 1 Protective Disc
• 1 Silicone Retentive Cap according to the selected retention:
  • Extra Soft: 600G Retention
  • Soft: 1200G Retention
  • Standard: 1800G Retention
  • Strong: 2700G Retention

Key Features

• Four Retention Options: Choose between Extra Soft 600G, Soft 1200G, Standard 1800G, or Strong 2700G according to the required retention level.
• 30° Angulated Design: Helps compensate for implant angulation and provides greater restorative flexibility in overdenture cases.
• Complete Set: Each package includes the 30° Angled Click Attachment, Metal Housing, Titanium Fixation Screw, Protective Disc, and selected Silicone Retentive Cap.
• Conical Connection Hex 2.25mm: Precision-engineered for a secure and stable fit with compatible Narrow Platform conical connection systems.
• Narrow Platform Design: Designed specifically for NP restorative applications requiring a compact connection.
• Three Height Options: Available in 1.0mm, 2.0mm, and 3.0mm heights to accommodate different soft-tissue conditions.
• Titanium Grade 5 Construction: Provides excellent strength, durability, corrosion resistance, and biocompatibility.
• Locator-Style Retention: Designed to provide secure and dependable retention for implant-supported overdenture restorations.

GDT Supply USA ensures the quality and reliability of every product. All dental implants are protected by a lifetime warranty, and all implant prosthetic components by a 10-year warranty. Each product is traceable by reference and batch number.
