Straight Ball Attachment Set – Narrow Platform Conical Connection
Straight Ball Attachment Set – Narrow Platform Conical Connection - 1mm / Yellow - Extra Soft (600 gr) is backordered and will ship as soon as it is back in stock.
Trusted Dental Supplies from GDT Supply USA
-
U.S. dental supplier for dentists, labs, and implant professionals
-
Fast domestic shipping with tracking
-
Expert support before and after your order.
Description
The Straight Ball Attachment Narrow Platform Set is designed for overdenture restorations requiring a reliable ball attachment retention solution for Conical Connection Hex 2.25mm Narrow Platform (NP) implant systems. Manufactured from Titanium Grade 5 (Ti-6Al-4V ELI), the attachment provides excellent strength, durability, corrosion resistance, and biocompatibility while maintaining a precise and stable connection.

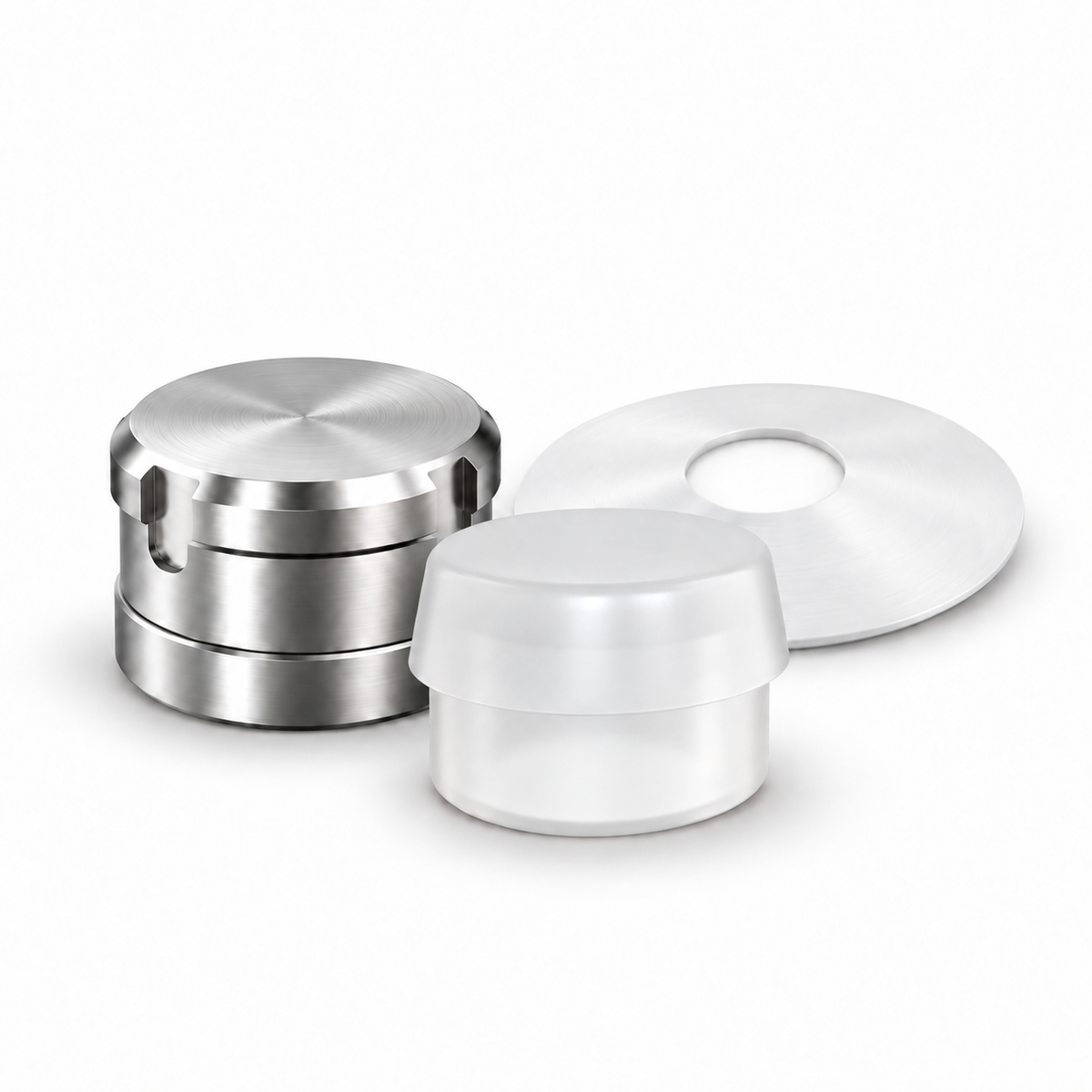

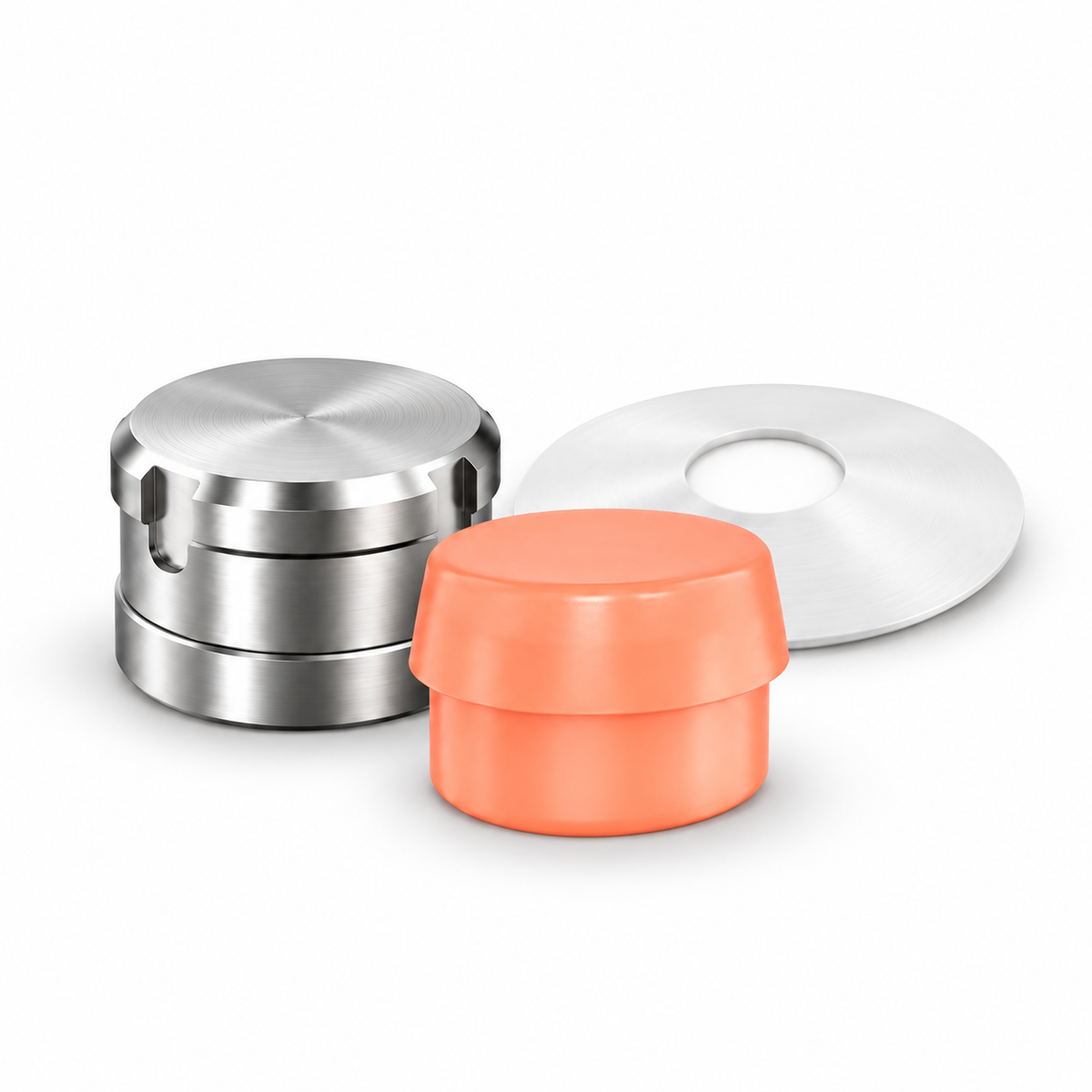

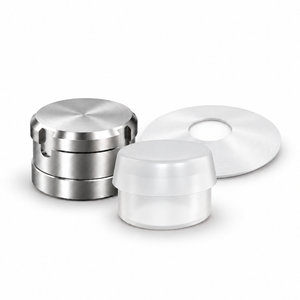

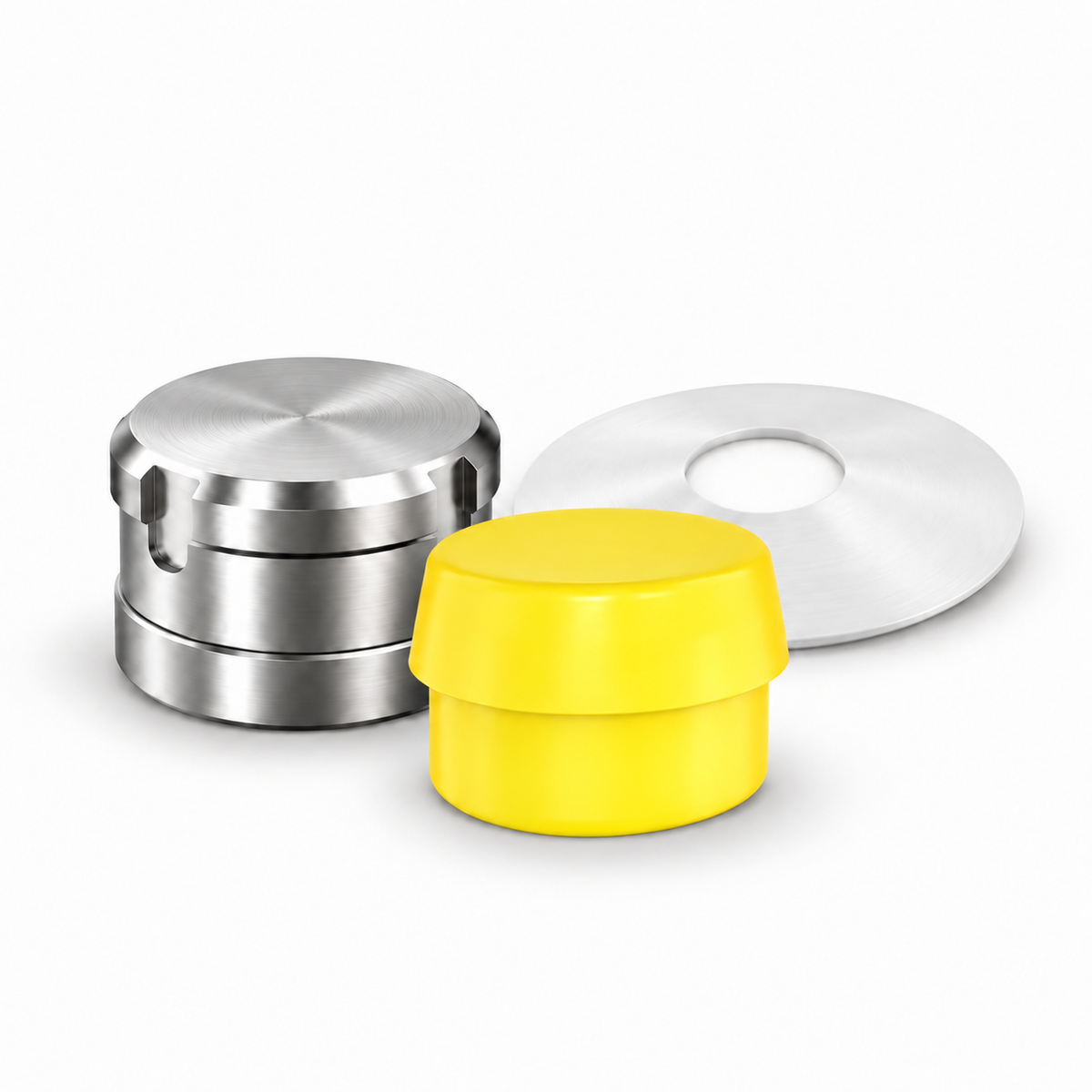

Each set includes a Straight Ball Attachment, Metal Housing, and one Silicone Retentive Cap. Three retention options are available, allowing the appropriate retention level to be selected according to the restorative requirements: Extra Soft 500G, Soft 900G, or Standard 1300G.
Product Specifications
- Connection Type: Conical Connection Hex 2.25mm
- Platform: Narrow Platform (NP)
- Ball Diameter: Ø2.5mm
- Platform Diameter: Ø3.8mm
- Heights: 1.0mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm
- Retention Options: Extra Soft 500G, Soft 900G, Standard 1300G
- Material: Titanium Grade 5 (Ti-6Al-4V ELI)
- Manufacturing Origin: Israel
Package Includes
Each package includes:
- 1 Straight Ball Attachment
- 1 Metal Housing
-
1 Silicone Retentive Cap according to the selected retention:
- Extra Soft: 500G Retention
- Soft: 900G Retention
- Standard: 1300G Retention
Key Features
- Three Retention Options: Choose between Extra Soft 500G, Soft 900G, or Standard 1300G according to the required retention level.
- Complete Set: Each package includes the Straight Ball Attachment, Metal Housing, and selected Silicone Retentive Cap.
- Conical Connection Hex 2.25mm: Precision-engineered for a secure and stable connection with compatible Narrow Platform conical connection implant systems.
- Ø2.5mm Ball Diameter: Provides consistent overdenture retention while supporting convenient prosthetic maintenance.

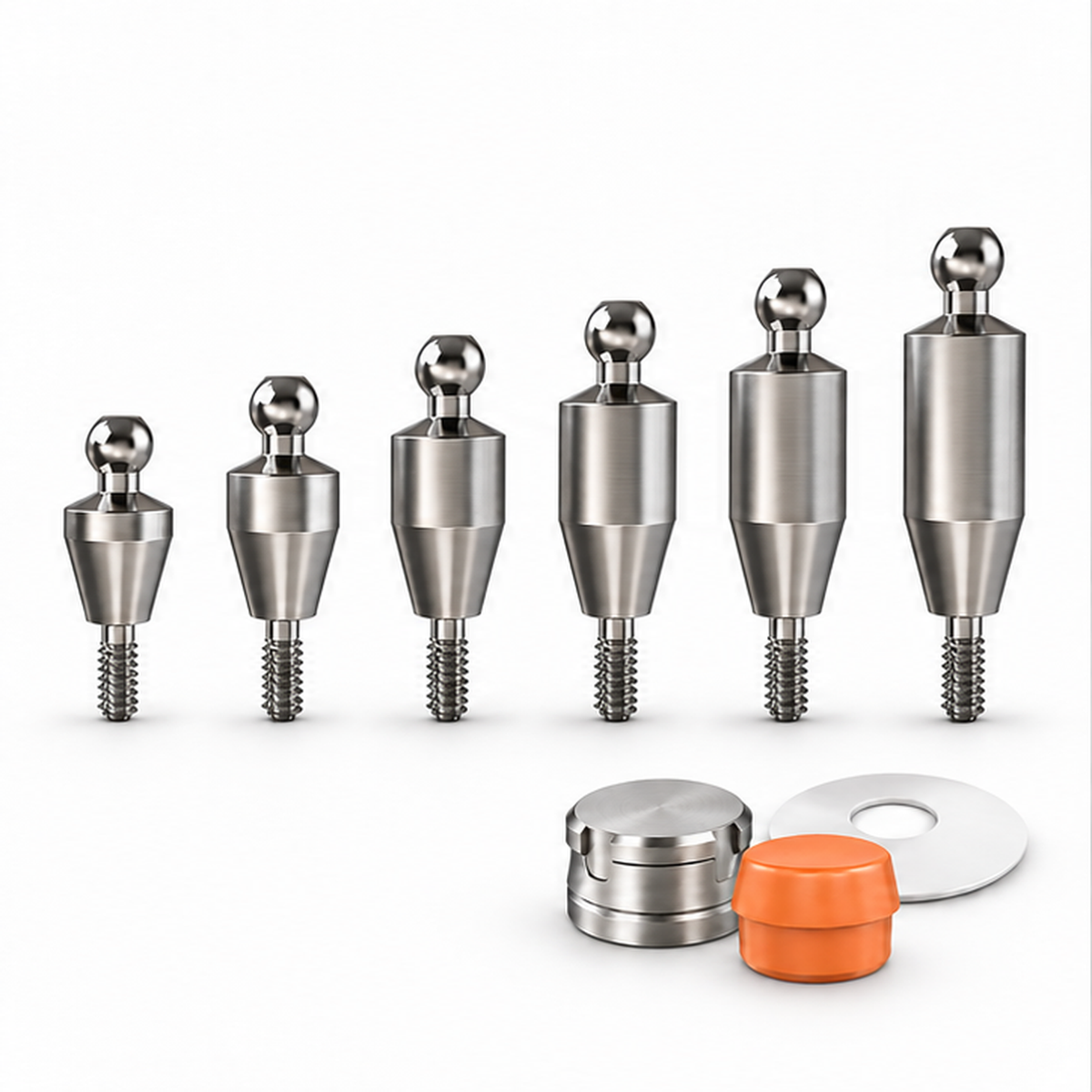

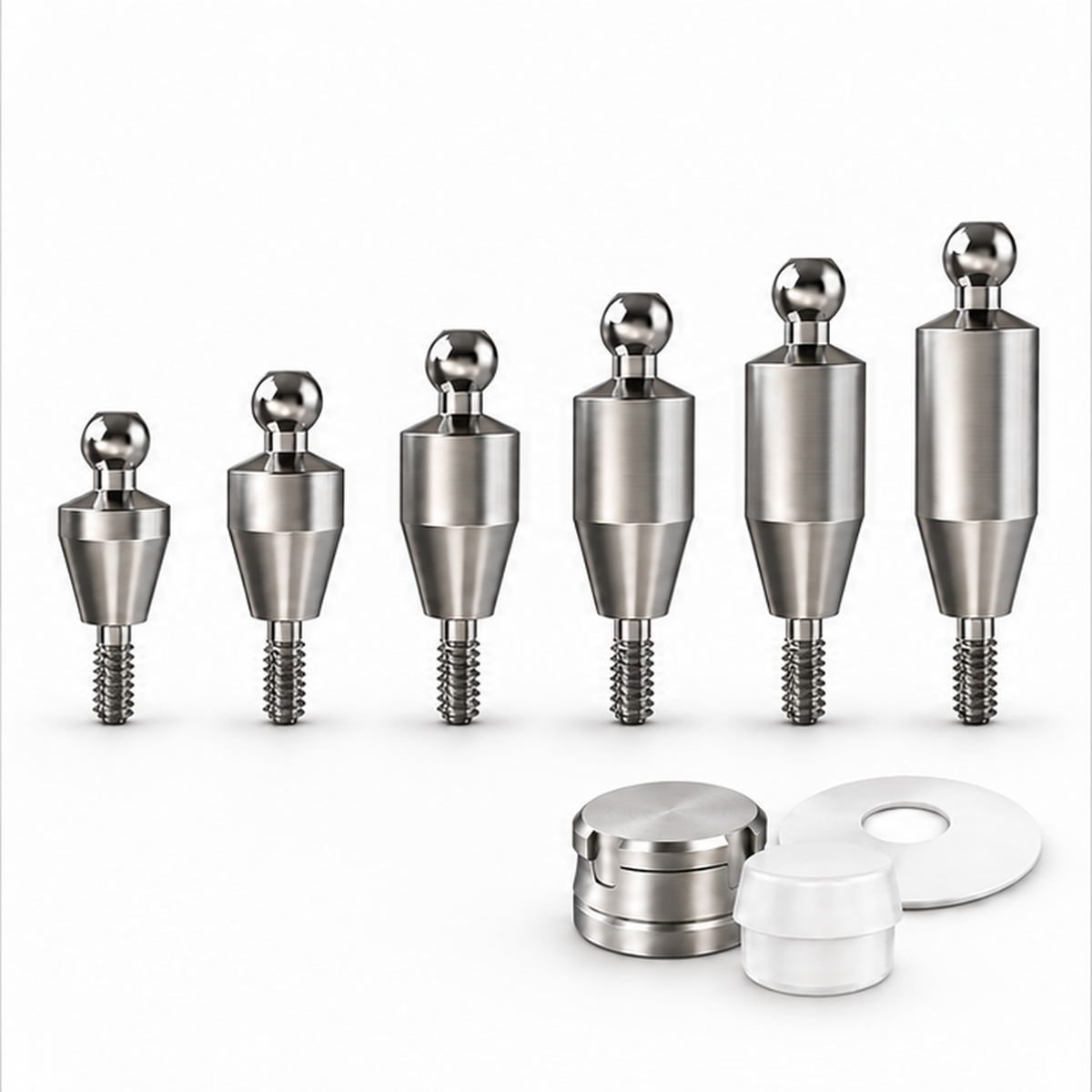

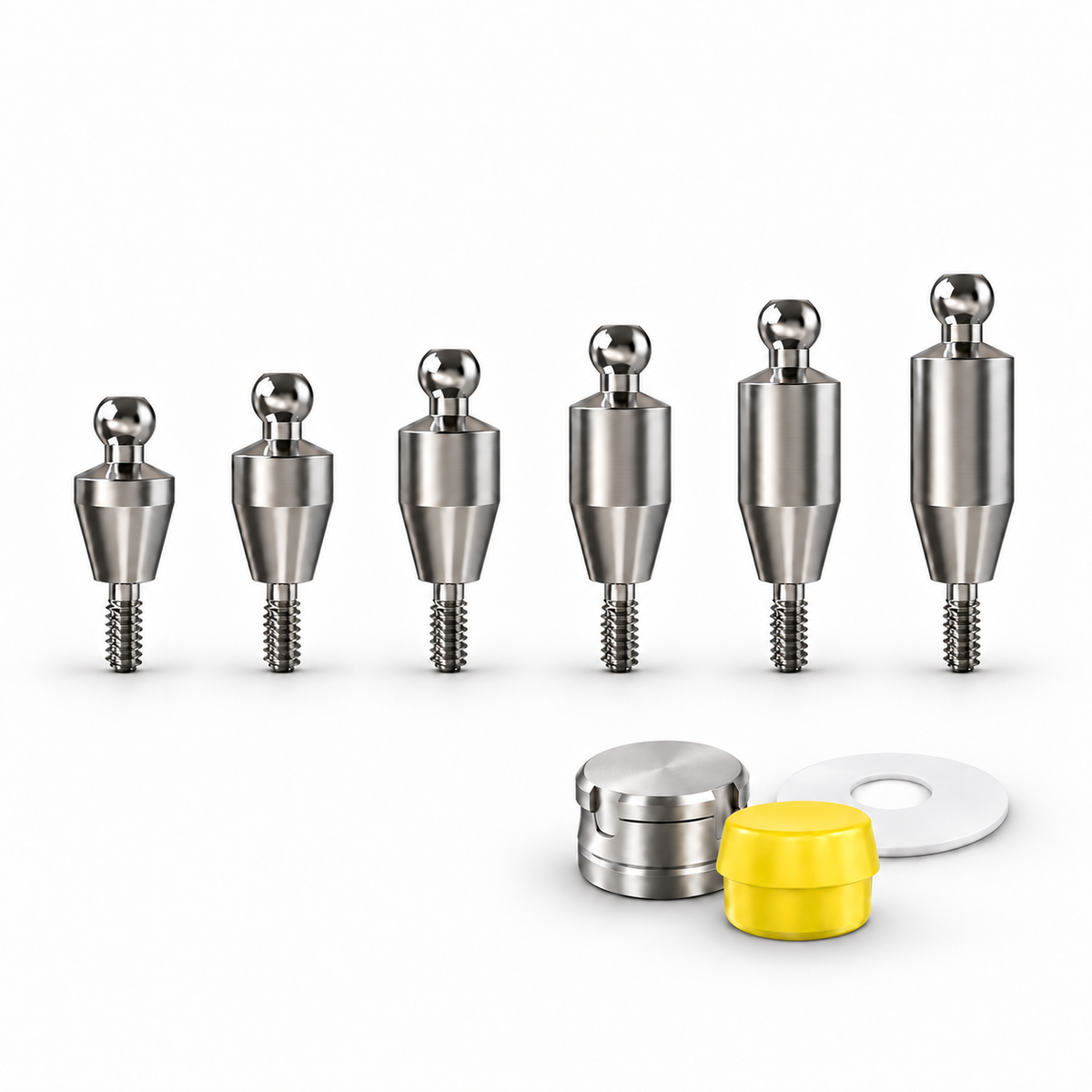

- Six Height Options: Available in 1.0mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm, and 6.0mm to accommodate different soft-tissue conditions.
- Integrated Design: One-piece structure with built-in screw helps provide precise seating and minimizes the number of separate prosthetic components.
- Titanium Grade 5 Construction: Provides excellent strength, durability, corrosion resistance, and biocompatibility.
Specifications
| Product type | Ball Attachment |
|---|---|
| Length | 1mm, 2mm, 3mm, 4mm, 5mm, 6mm |
| Retention | Yellow - Extra Soft (600 gr), Pink - Soft (1200 gr), Clear - Standard (1800 gr) |
| Diameter | |
| Material | |
| IFU | View file |
| MSDS | View file |
| Available SKUs | BAT-NP-1+SYCB, BAT-NP-1+SPCB, BAT-NP-1+SWCB, BAT-NP-2+SYCB, BAT-NP-2+SPCB, BAT-NP-2+SWCB, BAT-NP-3+SYCB, BAT-NP-3+SPCB, BAT-NP-3+SWCB, BAT-NP-4+SYCB, BAT-NP-4+SPCB, BAT-NP-4+SWCB, BAT-NP-5+SYCB, BAT-NP-5+SPCB, BAT-NP-5+SWCB, BAT-NP-6+SYCB, BAT-NP-6+SPCB, BAT-NP-6+SWCB |
Warranty
GDT Supply USA ensures the quality and reliability of every product. All dental implants are protected by a lifetime warranty, and all implant prosthetic components by a 10-year warranty. Each product is traceable by reference and batch number.
Description
Description
The Straight Ball Attachment Narrow Platform Set is designed for overdenture restorations requiring a reliable ball attachment retention solution for Conical Connection Hex 2.25mm Narrow Platform (NP) implant systems. Manufactured from Titanium Grade 5 (Ti-6Al-4V ELI), the attachment provides excellent strength, durability, corrosion resistance, and biocompatibility while maintaining a precise and stable connection.
Each set includes a Straight Ball Attachment, Metal Housing, and one Silicone Retentive Cap. Three retention options are available, allowing the appropriate retention level to be selected according to the restorative requirements: Extra Soft 500G, Soft 900G, or Standard 1300G.
Product Specifications
- Connection Type: Conical Connection Hex 2.25mm
- Platform: Narrow Platform (NP)
- Ball Diameter: Ø2.5mm
- Platform Diameter: Ø3.8mm
- Heights: 1.0mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm
- Retention Options: Extra Soft 500G, Soft 900G, Standard 1300G
- Material: Titanium Grade 5 (Ti-6Al-4V ELI)
- Manufacturing Origin: Israel
Package Includes
Each package includes:
- 1 Straight Ball Attachment
- 1 Metal Housing
-
1 Silicone Retentive Cap according to the selected retention:
- Extra Soft: 500G Retention
- Soft: 900G Retention
- Standard: 1300G Retention
Key Features
- Three Retention Options: Choose between Extra Soft 500G, Soft 900G, or Standard 1300G according to the required retention level.
- Complete Set: Each package includes the Straight Ball Attachment, Metal Housing, and selected Silicone Retentive Cap.
- Conical Connection Hex 2.25mm: Precision-engineered for a secure and stable connection with compatible Narrow Platform conical connection implant systems.
- Ø2.5mm Ball Diameter: Provides consistent overdenture retention while supporting convenient prosthetic maintenance.
- Six Height Options: Available in 1.0mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm, and 6.0mm to accommodate different soft-tissue conditions.
- Integrated Design: One-piece structure with built-in screw helps provide precise seating and minimizes the number of separate prosthetic components.
- Titanium Grade 5 Construction: Provides excellent strength, durability, corrosion resistance, and biocompatibility.
Specifications
Specifications
| Product type | Ball Attachment |
|---|---|
| Length | 1mm, 2mm, 3mm, 4mm, 5mm, 6mm |
| Retention | Yellow - Extra Soft (600 gr), Pink - Soft (1200 gr), Clear - Standard (1800 gr) |
| Diameter | |
| Material | |
| IFU | View file |
| MSDS | View file |
| Available SKUs | BAT-NP-1+SYCB, BAT-NP-1+SPCB, BAT-NP-1+SWCB, BAT-NP-2+SYCB, BAT-NP-2+SPCB, BAT-NP-2+SWCB, BAT-NP-3+SYCB, BAT-NP-3+SPCB, BAT-NP-3+SWCB, BAT-NP-4+SYCB, BAT-NP-4+SPCB, BAT-NP-4+SWCB, BAT-NP-5+SYCB, BAT-NP-5+SPCB, BAT-NP-5+SWCB, BAT-NP-6+SYCB, BAT-NP-6+SPCB, BAT-NP-6+SWCB |
Warranty
Warranty
GDT Supply USA ensures the quality and reliability of every product. All dental implants are protected by a lifetime warranty, and all implant prosthetic components by a 10-year warranty. Each product is traceable by reference and batch number.
