Description
The Premium Straight Ball Attachment Narrow Platform Kit is designed for overdenture restorations requiring a complete and reliable ball attachment retention solution for Conical Connection Hex 2.25mm Narrow Platform (NP) implant systems.

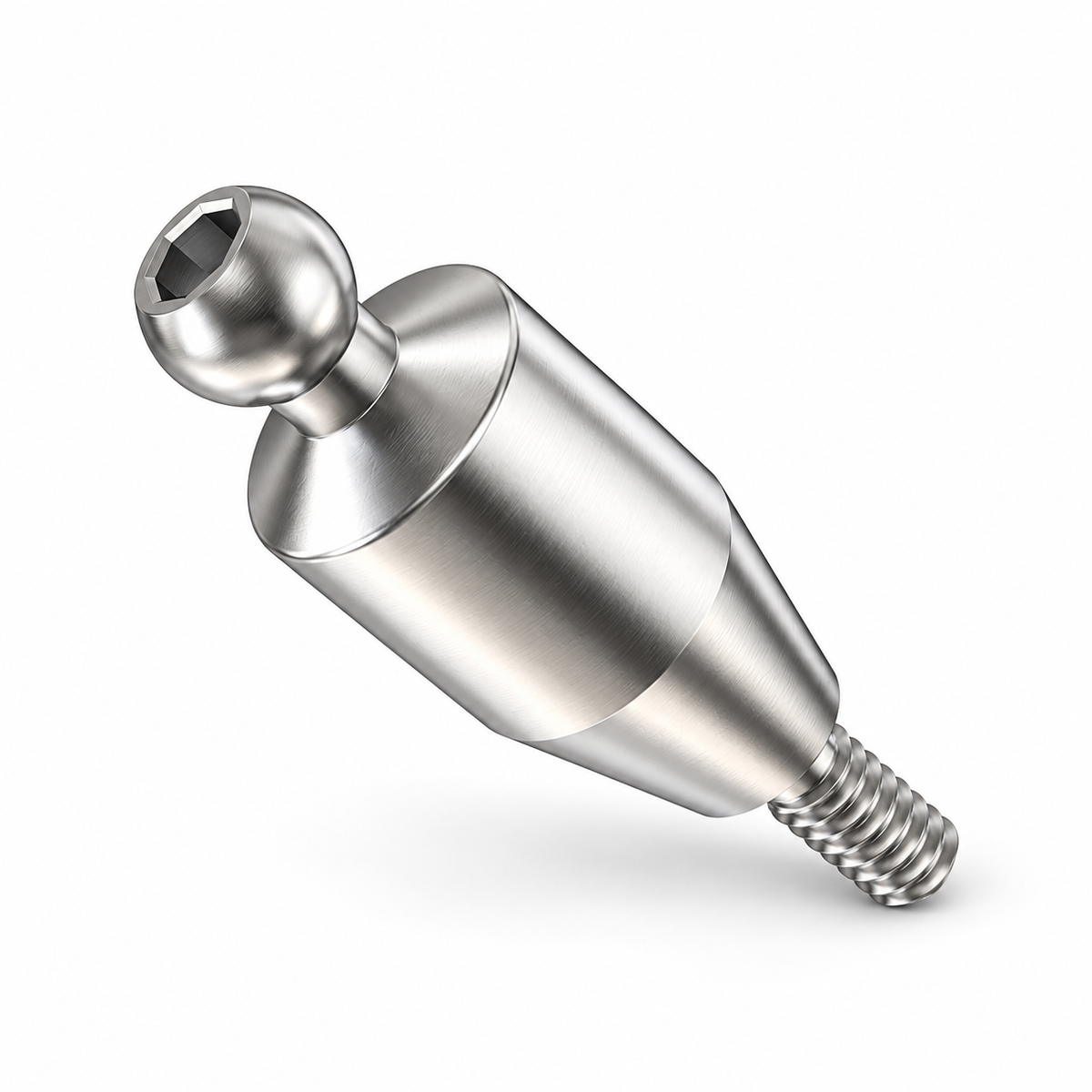

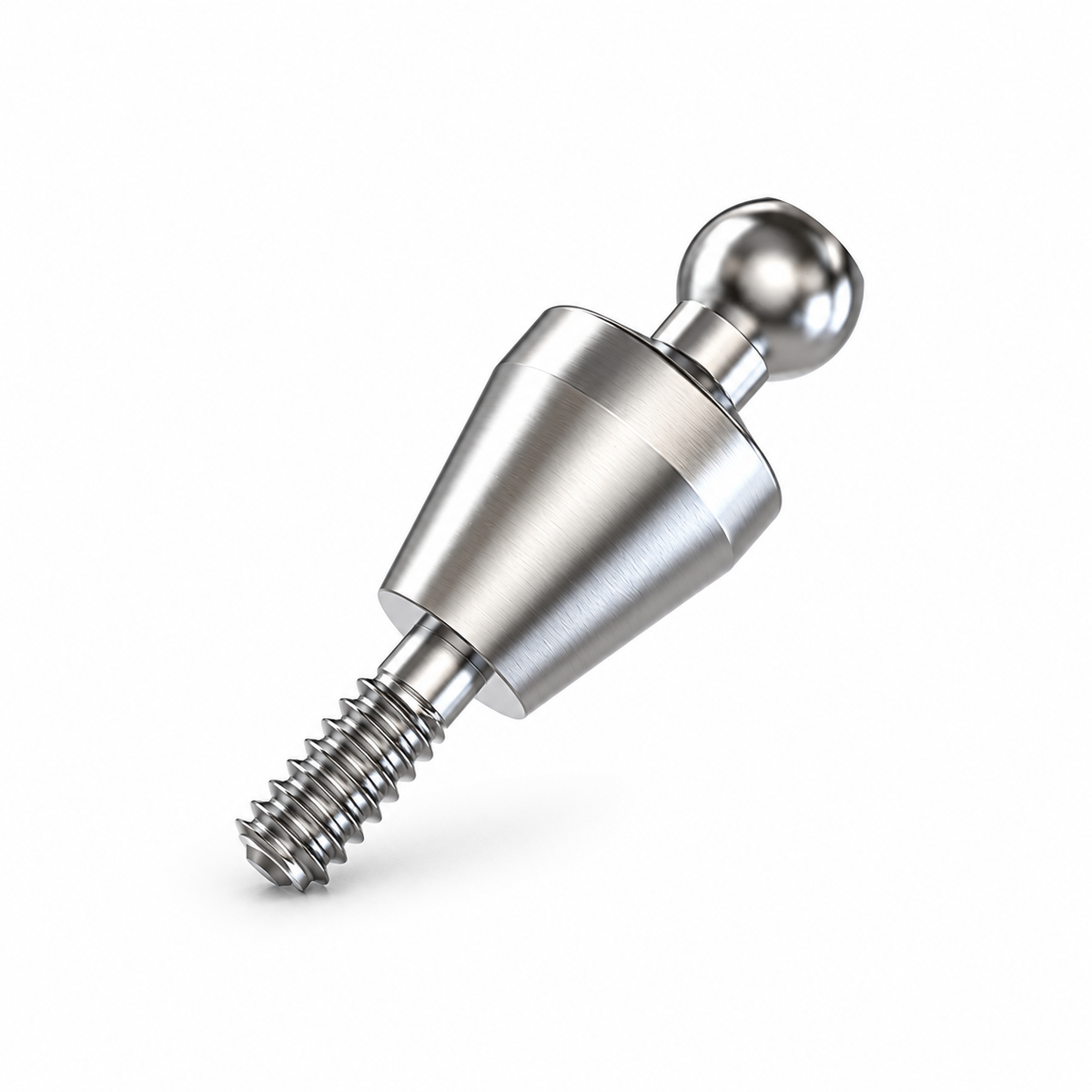

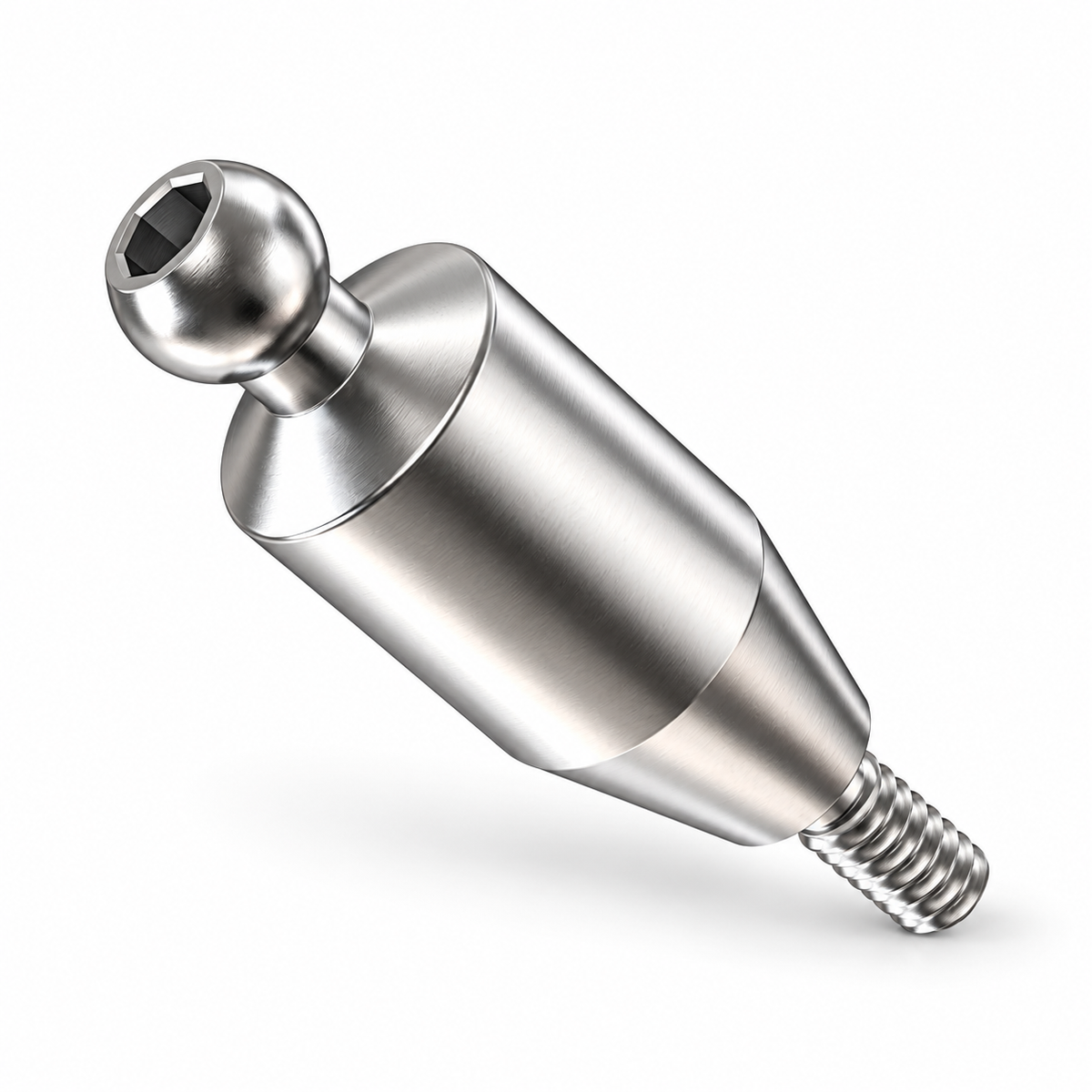

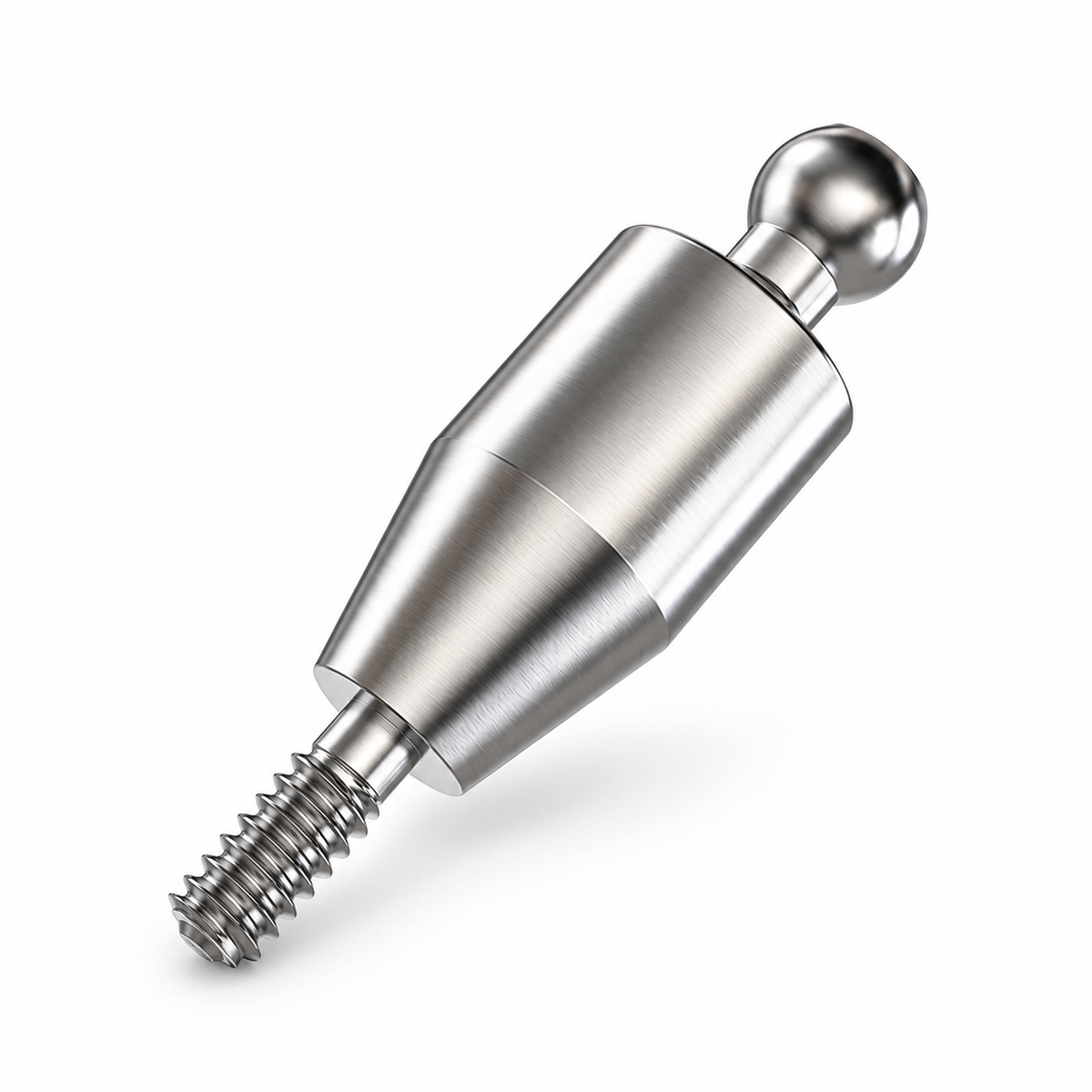

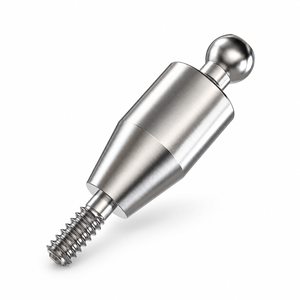

Manufactured from Titanium Grade 5 (Ti-6Al-4V ELI), the Straight Ball Attachment provides excellent strength, durability, corrosion resistance, and biocompatibility. Its Ø2.5mm ball diameter provides reliable overdenture retention, while six available height options allow adaptation to different soft-tissue conditions and restorative requirements.

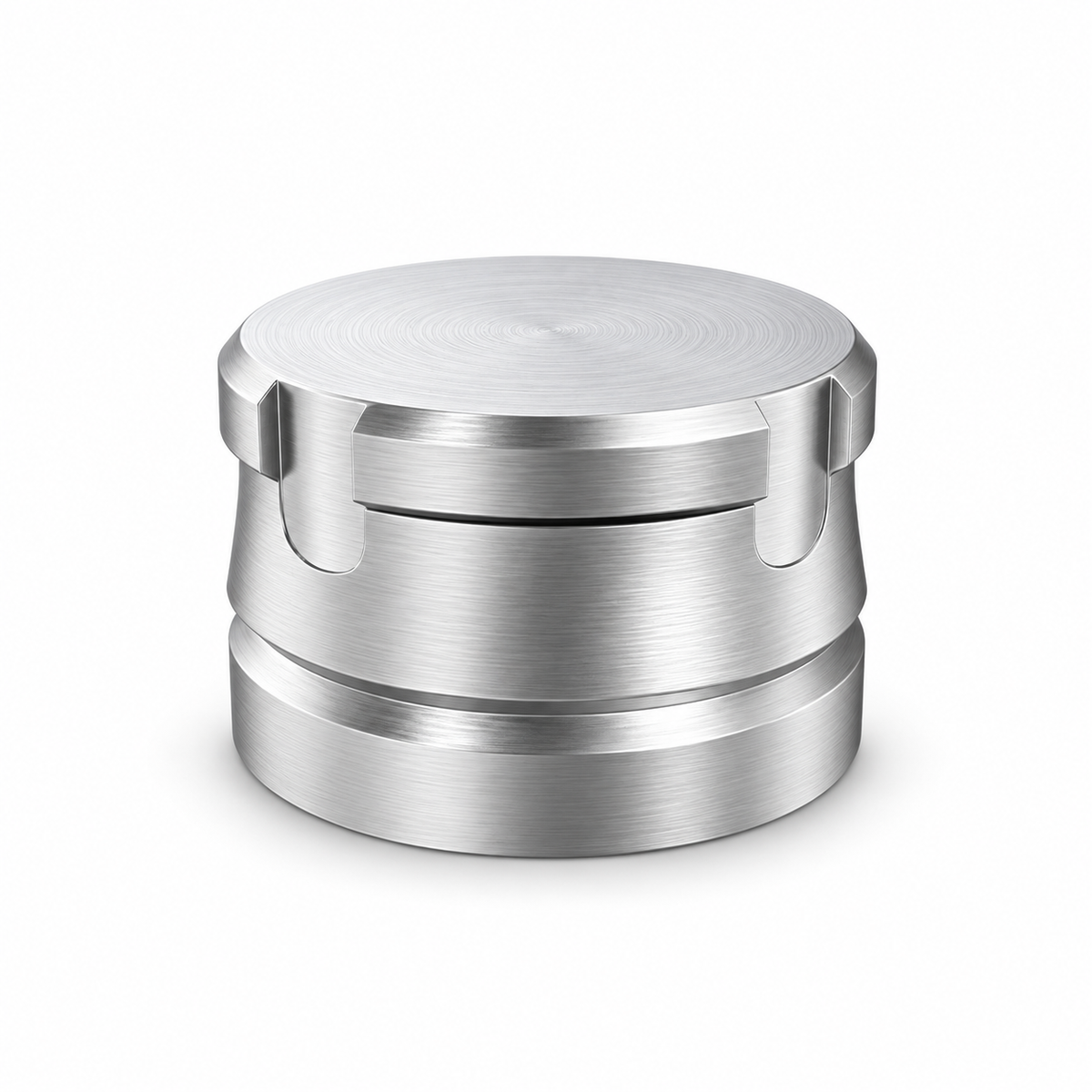

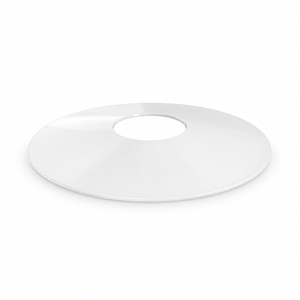

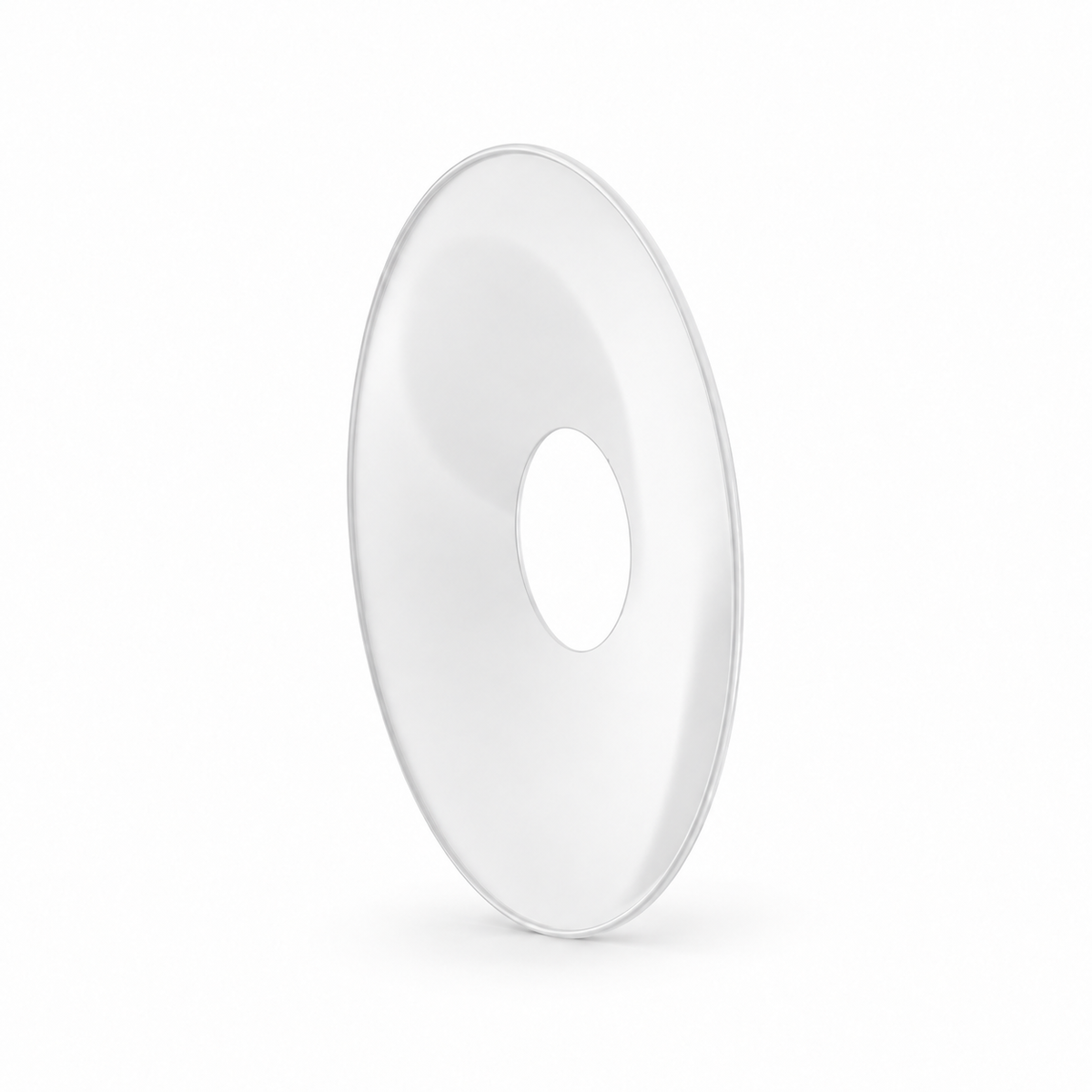

The kit includes the Straight Ball Attachment, Metal Housing, Protective Disc, and four Retentive Caps with different retention levels, providing a complete solution for clinical and laboratory overdenture workflows.
Product Specifications
- Connection Type: Conical Connection Hex 2.25mm
- Platform: Narrow Platform (NP)
- Ball Diameter: Ø2.5mm
- Platform Diameter: Ø3.8mm
- Heights: 1.0mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm

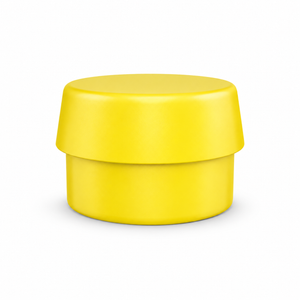

- Silicone Cap Retention: Extra Soft 500G, Soft 900G, Standard 1300G, Lab Use – No Retention
- Material: Titanium Grade 5 (Ti-6Al-4V ELI)
- Manufacturing Origin: Israel

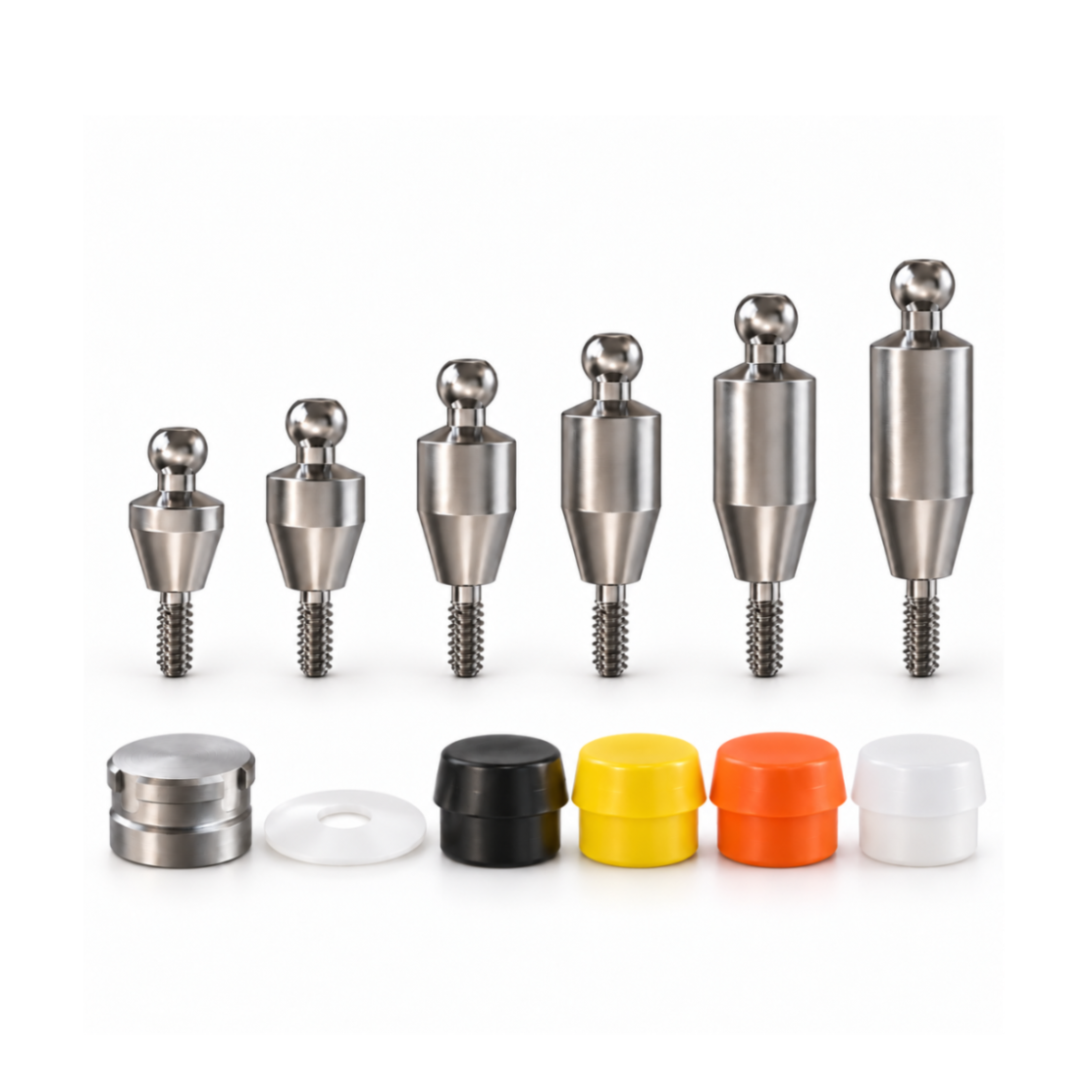

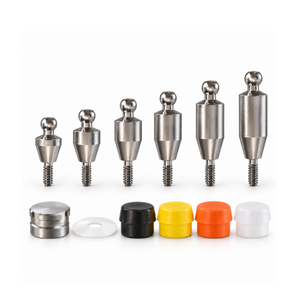

Package Includes

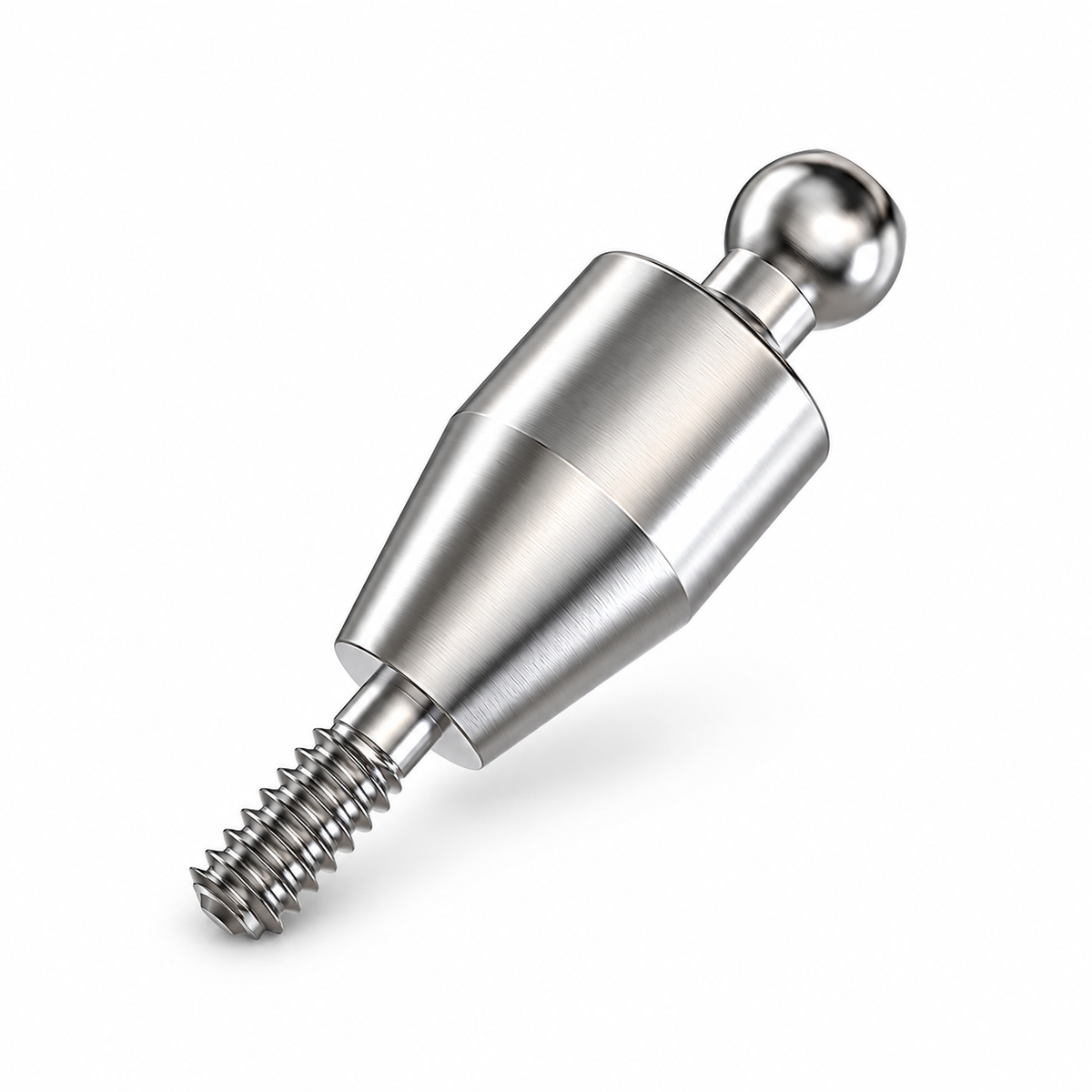

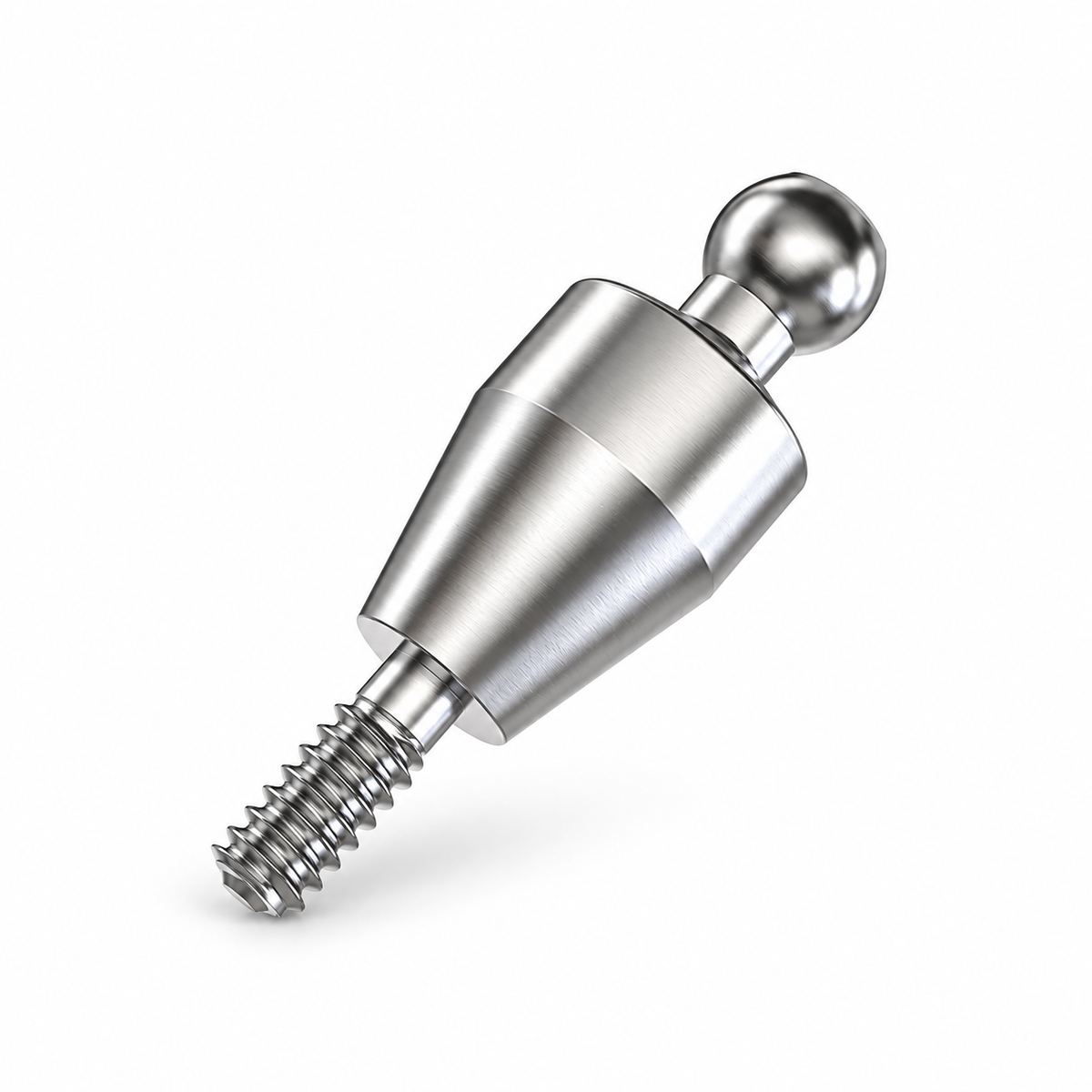

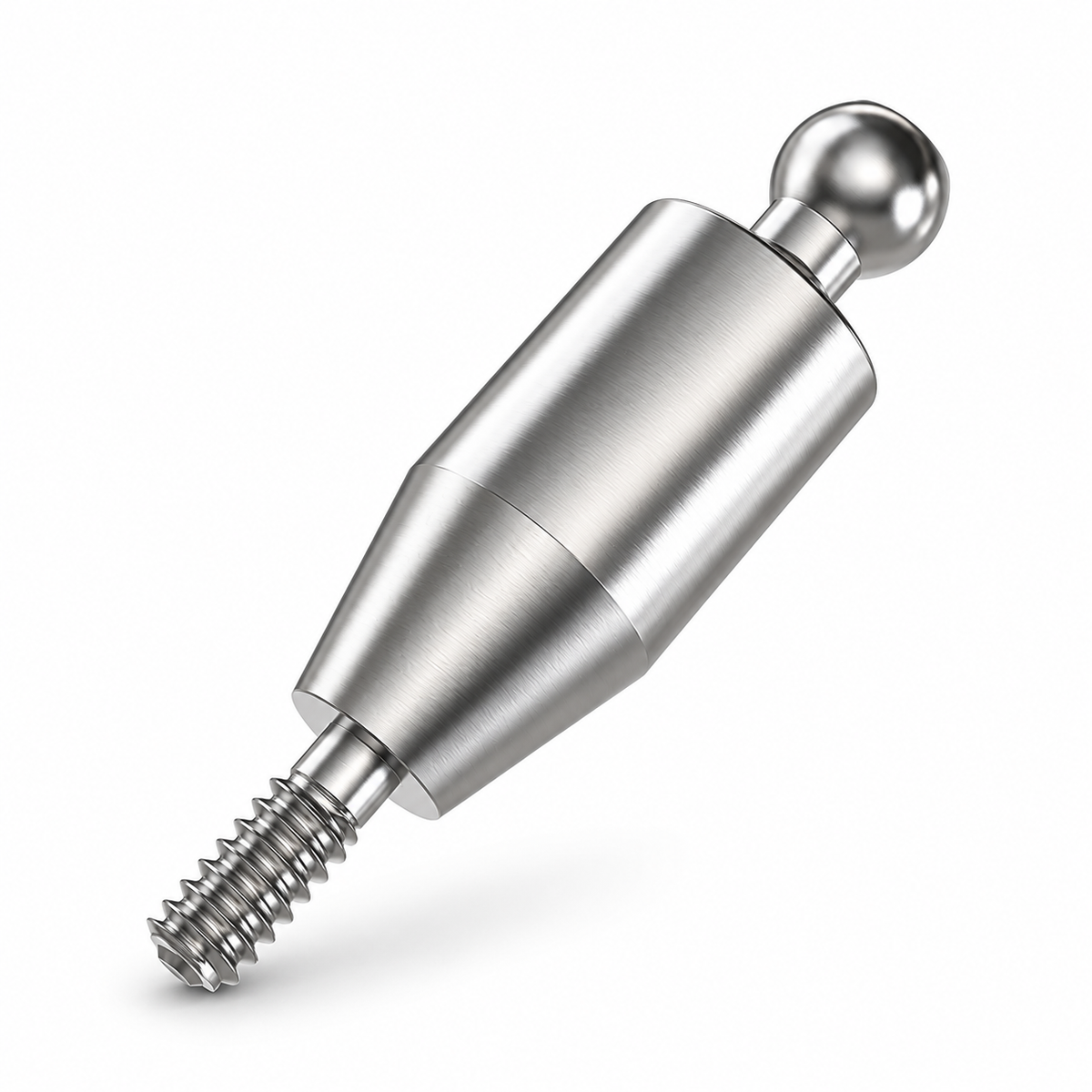

- 1 Straight Ball Attachment

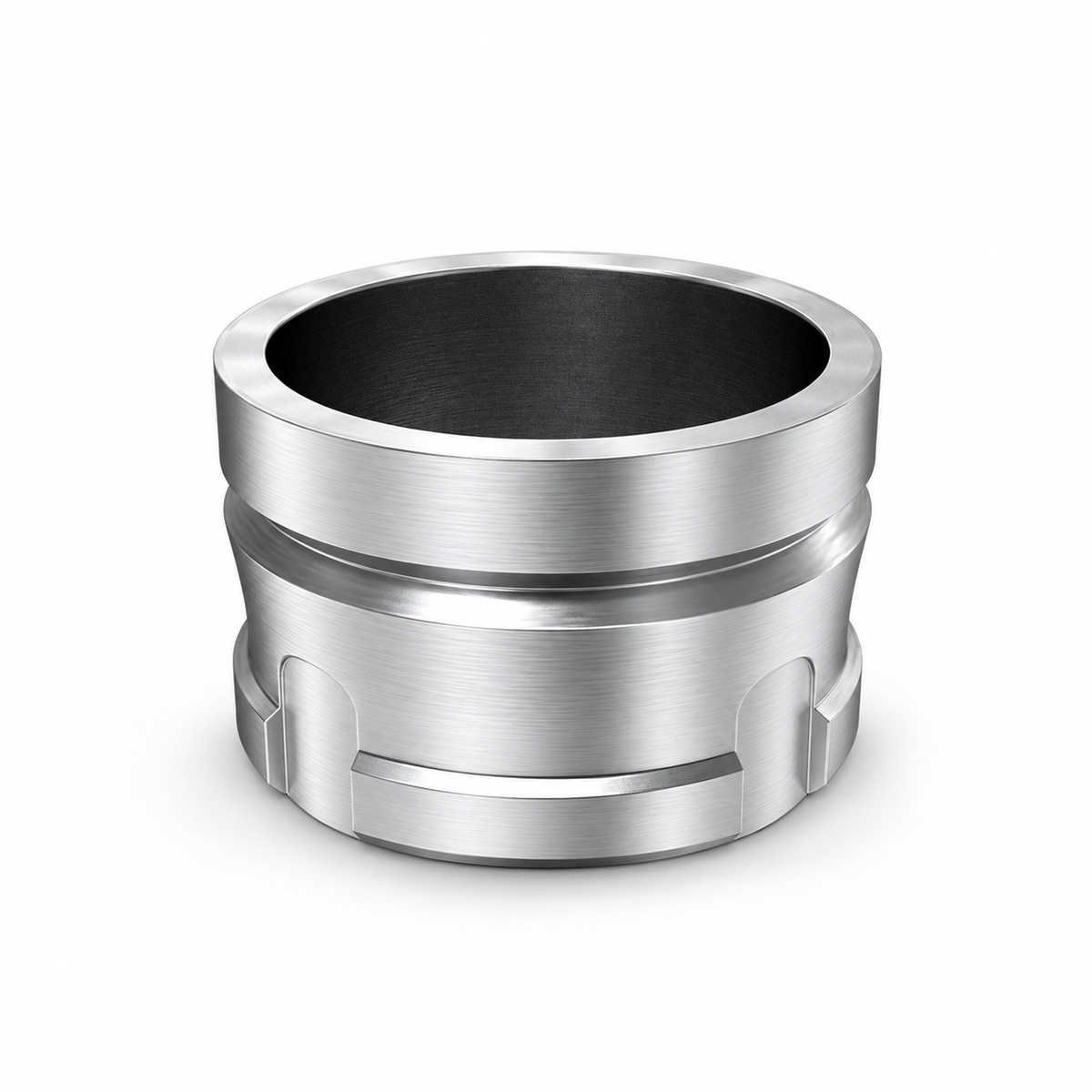

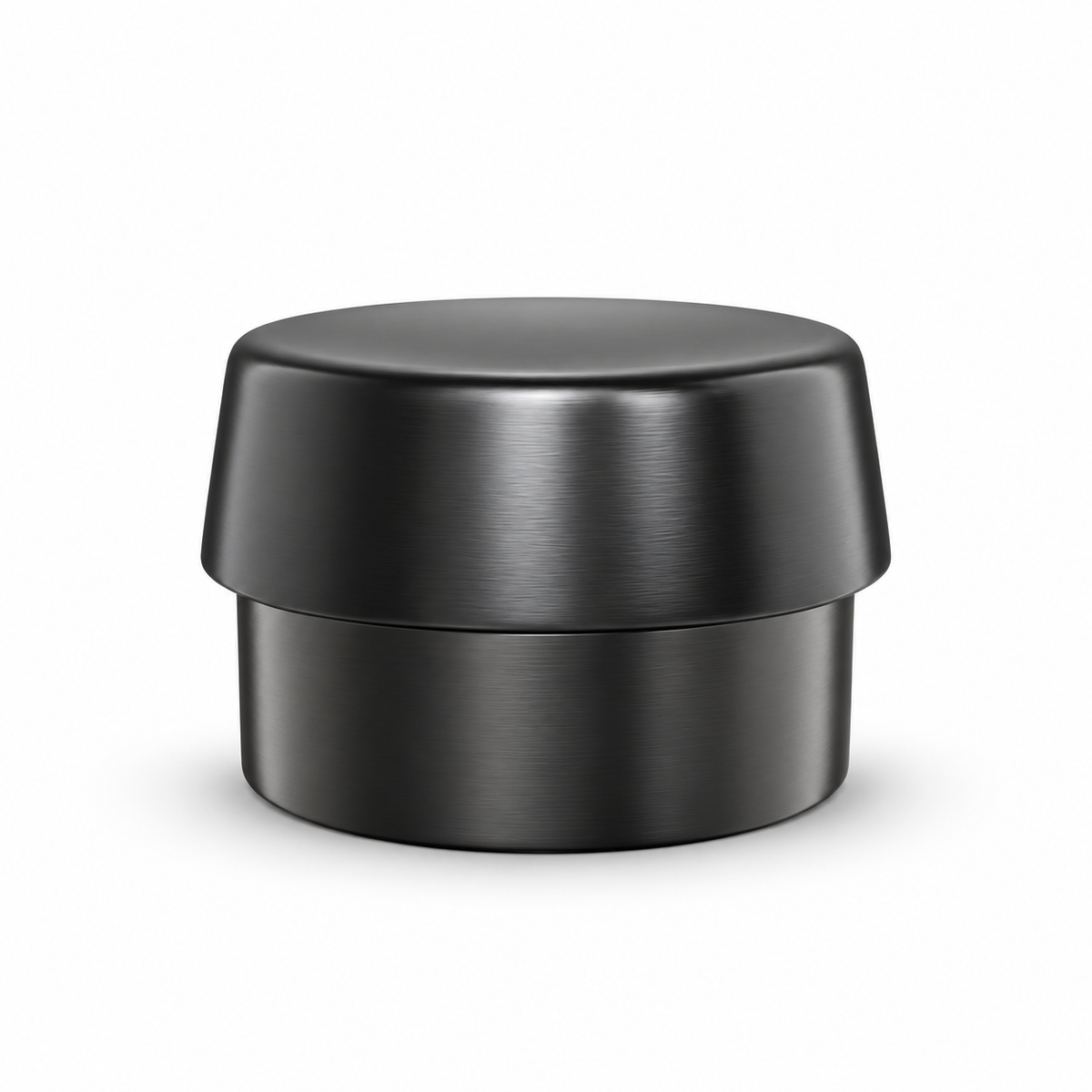

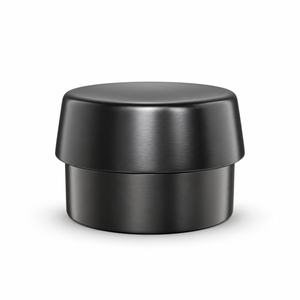

- 1 Metal Housing

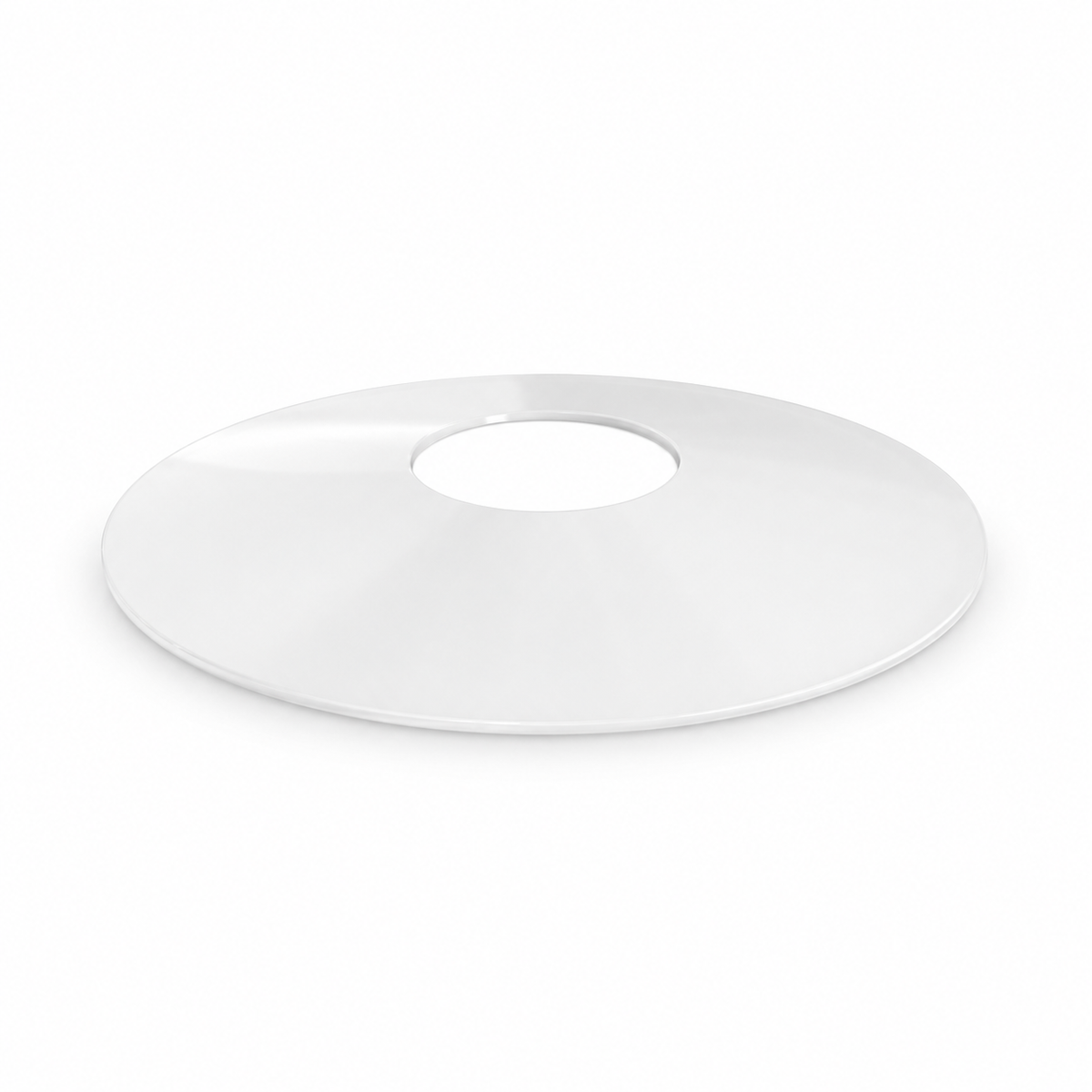

- 1 Protective Disc
-

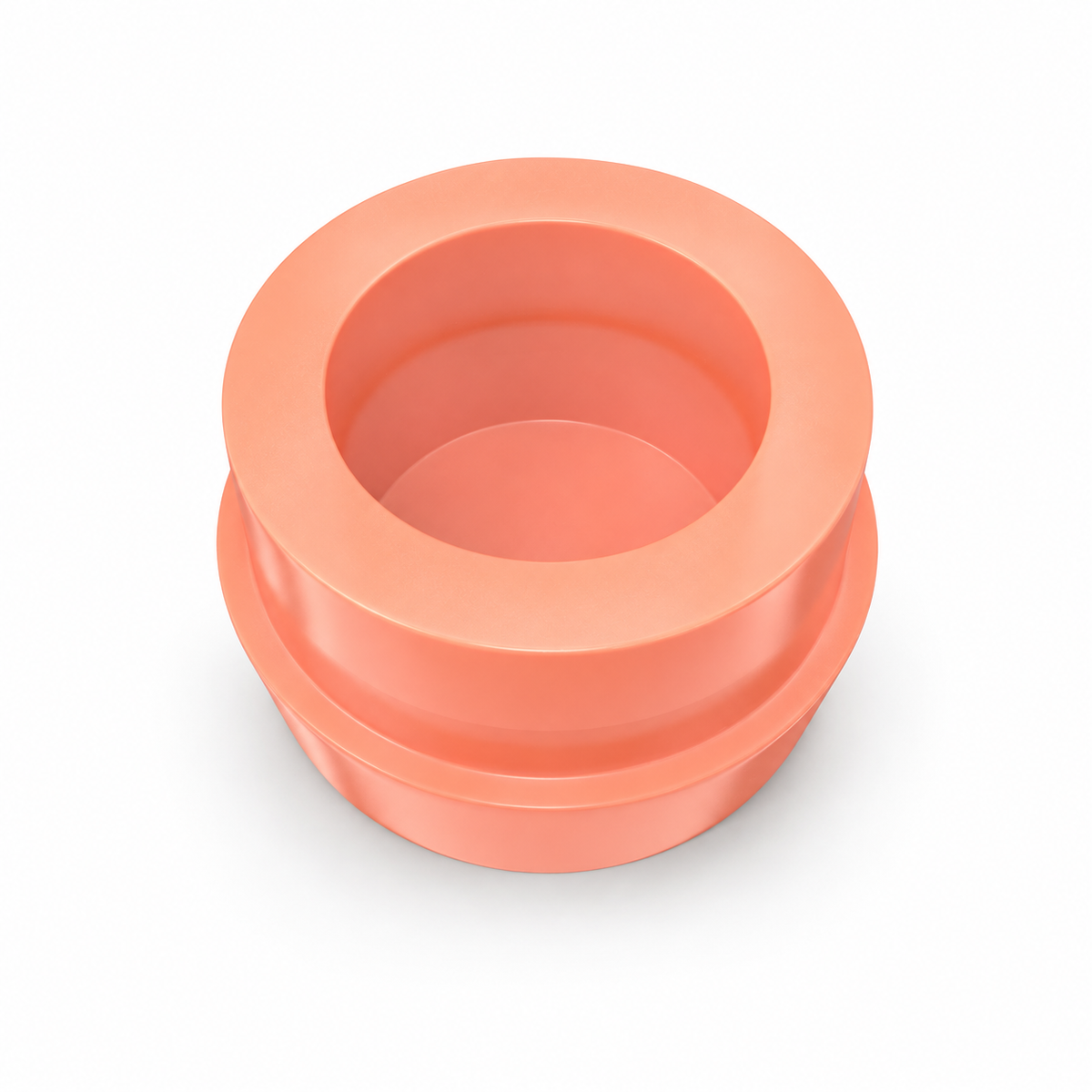

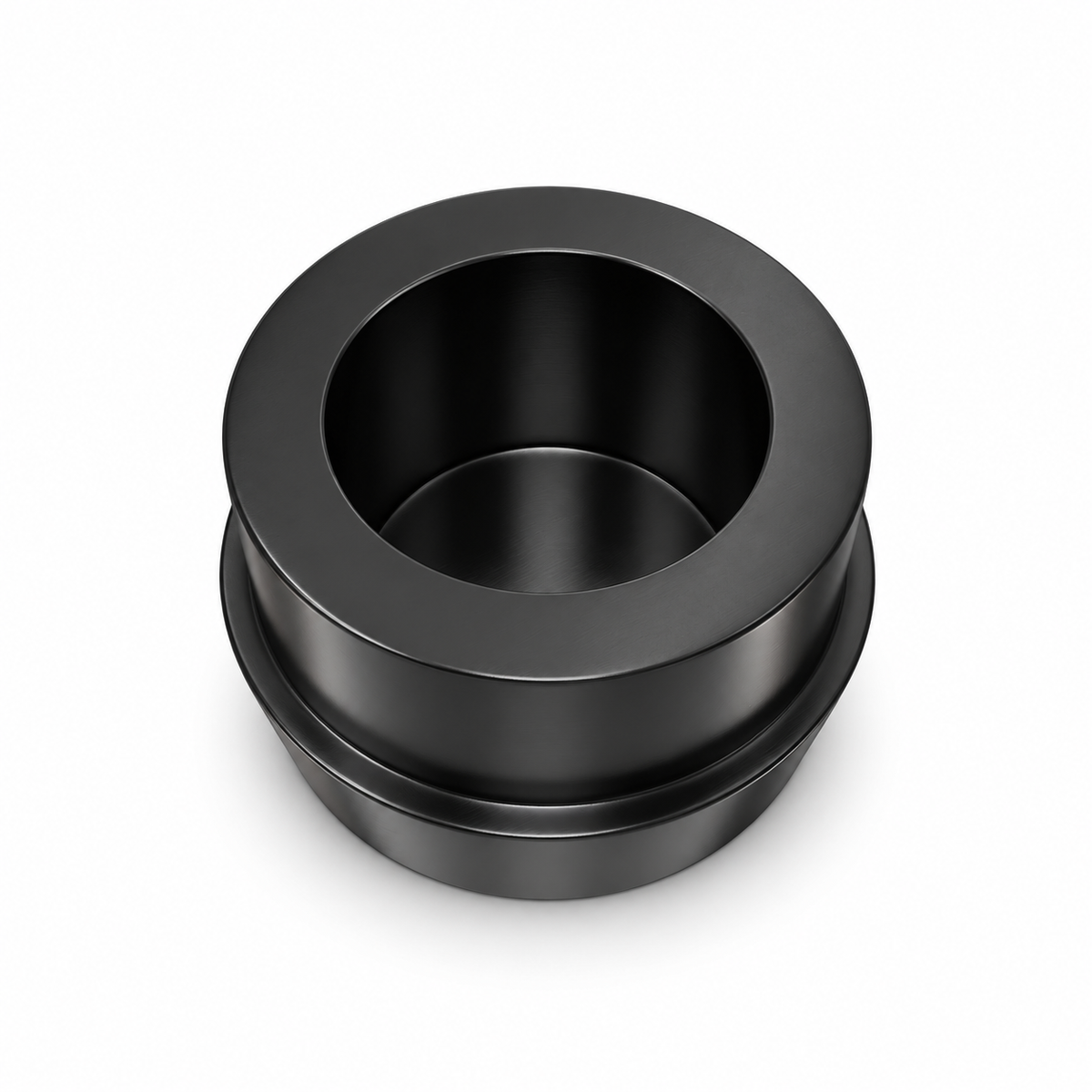

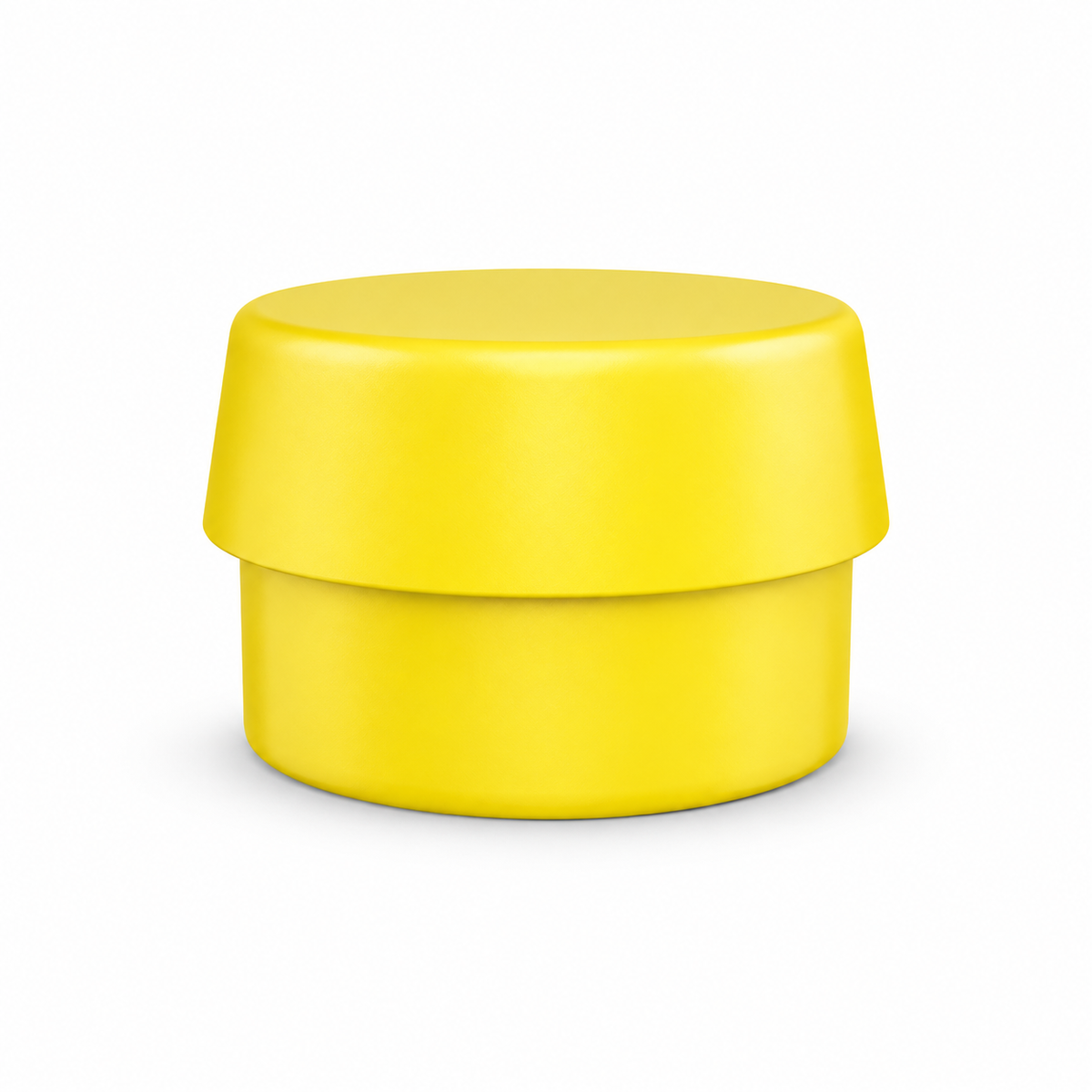

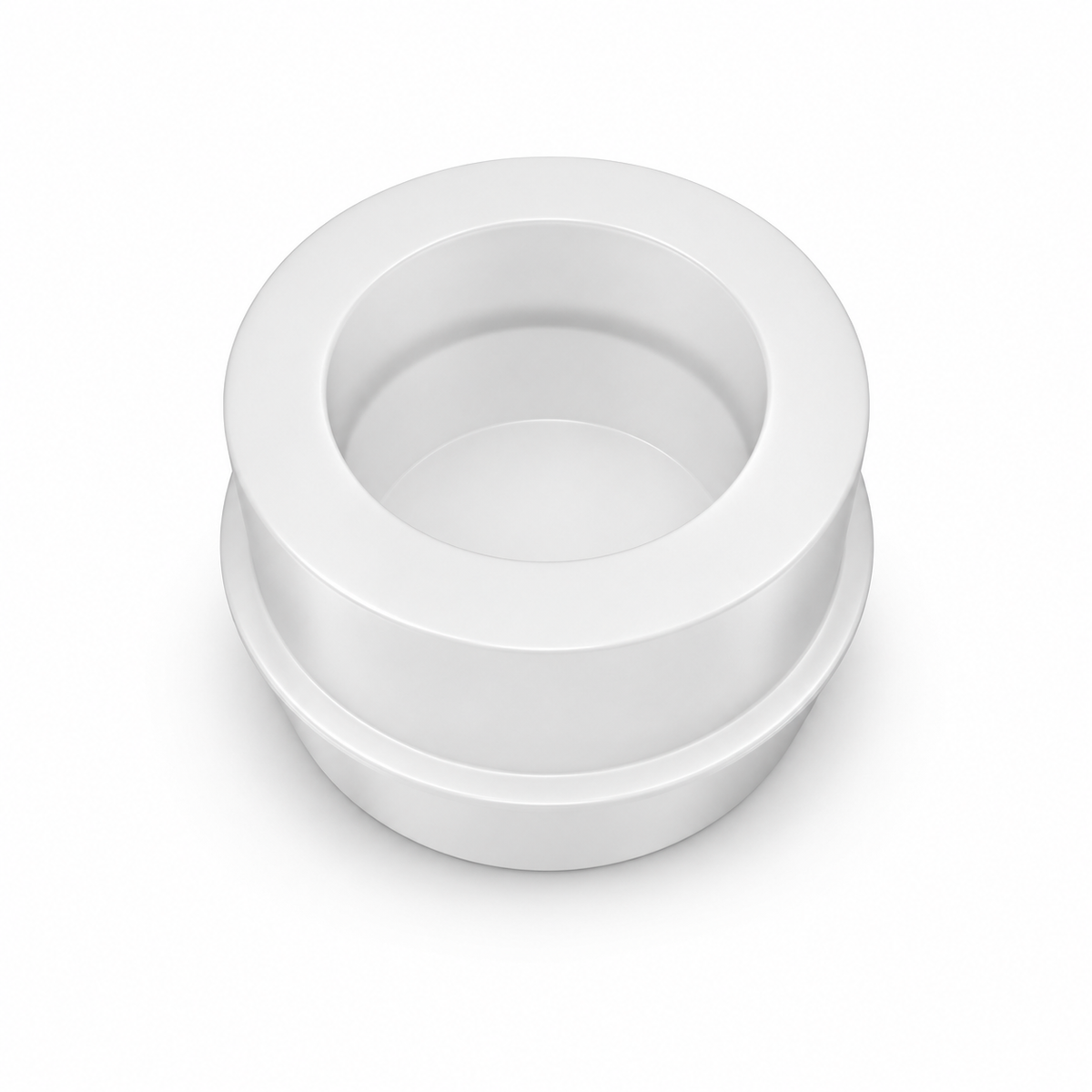

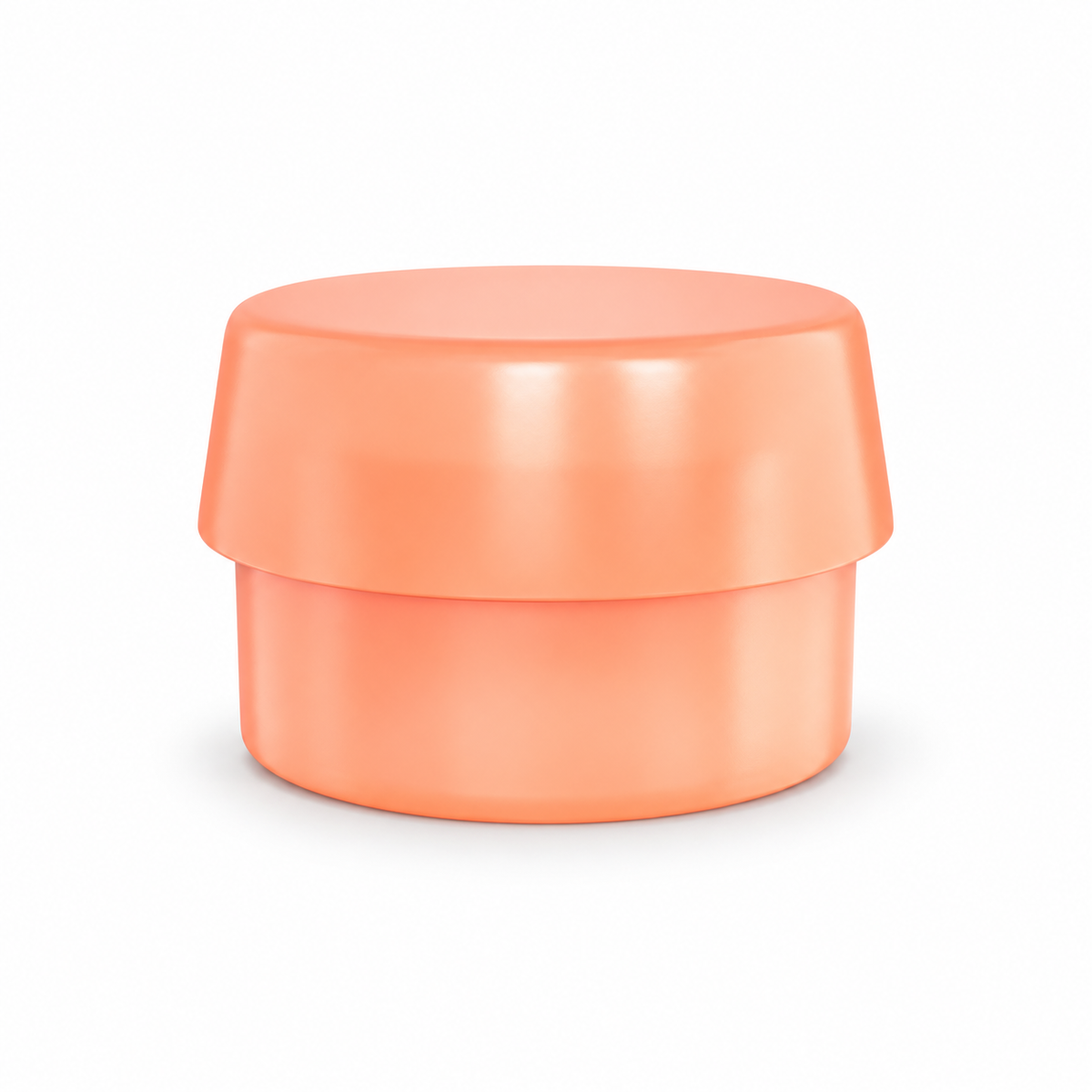

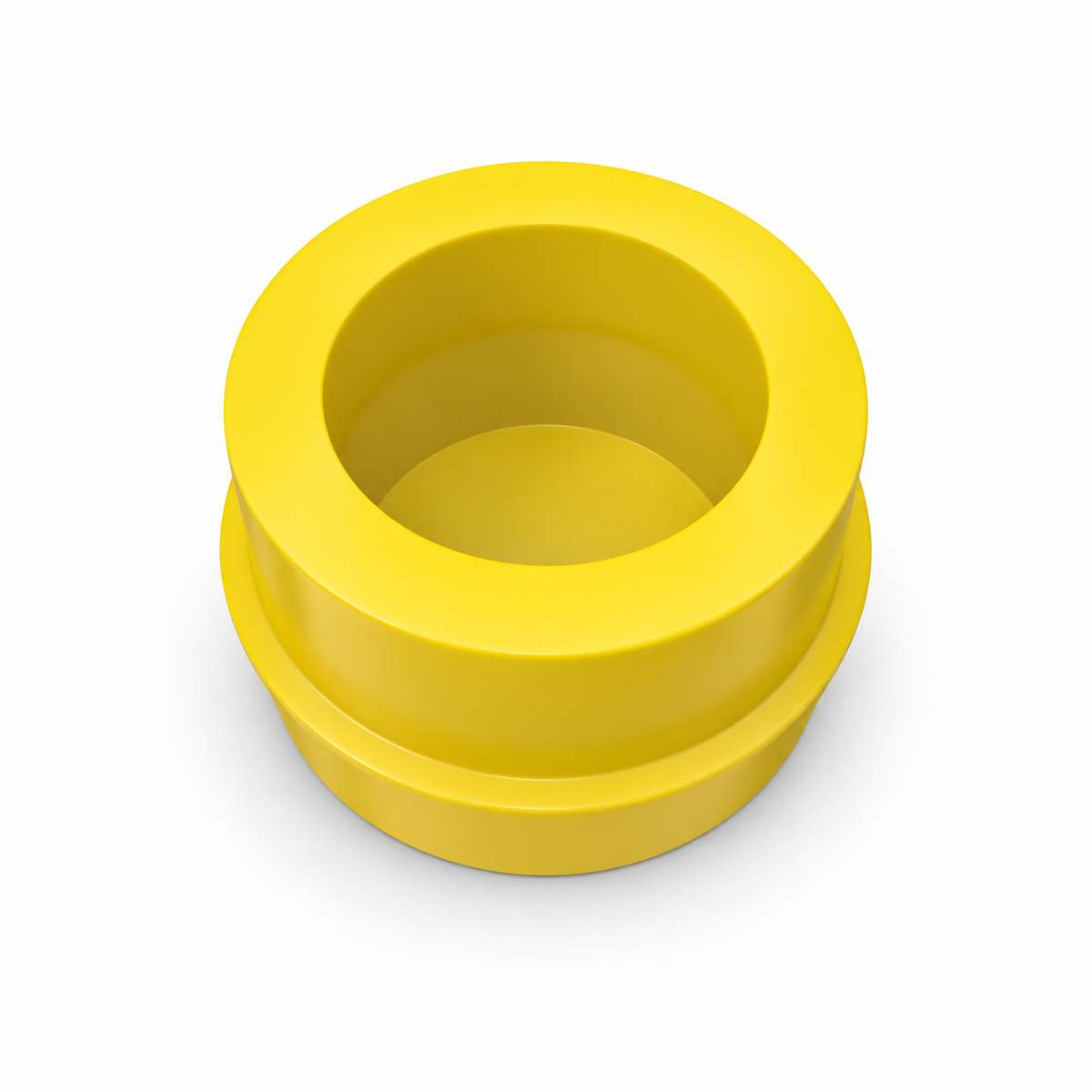

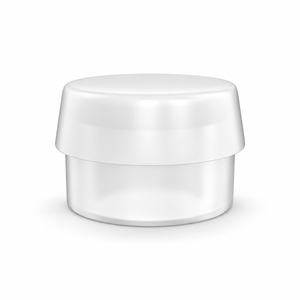

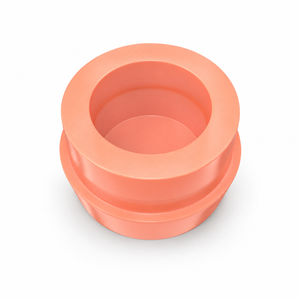

4 Retentive Caps:
- Extra Soft: 500G Retention
- Soft: 900G Retention
- Standard: 1300G Retention

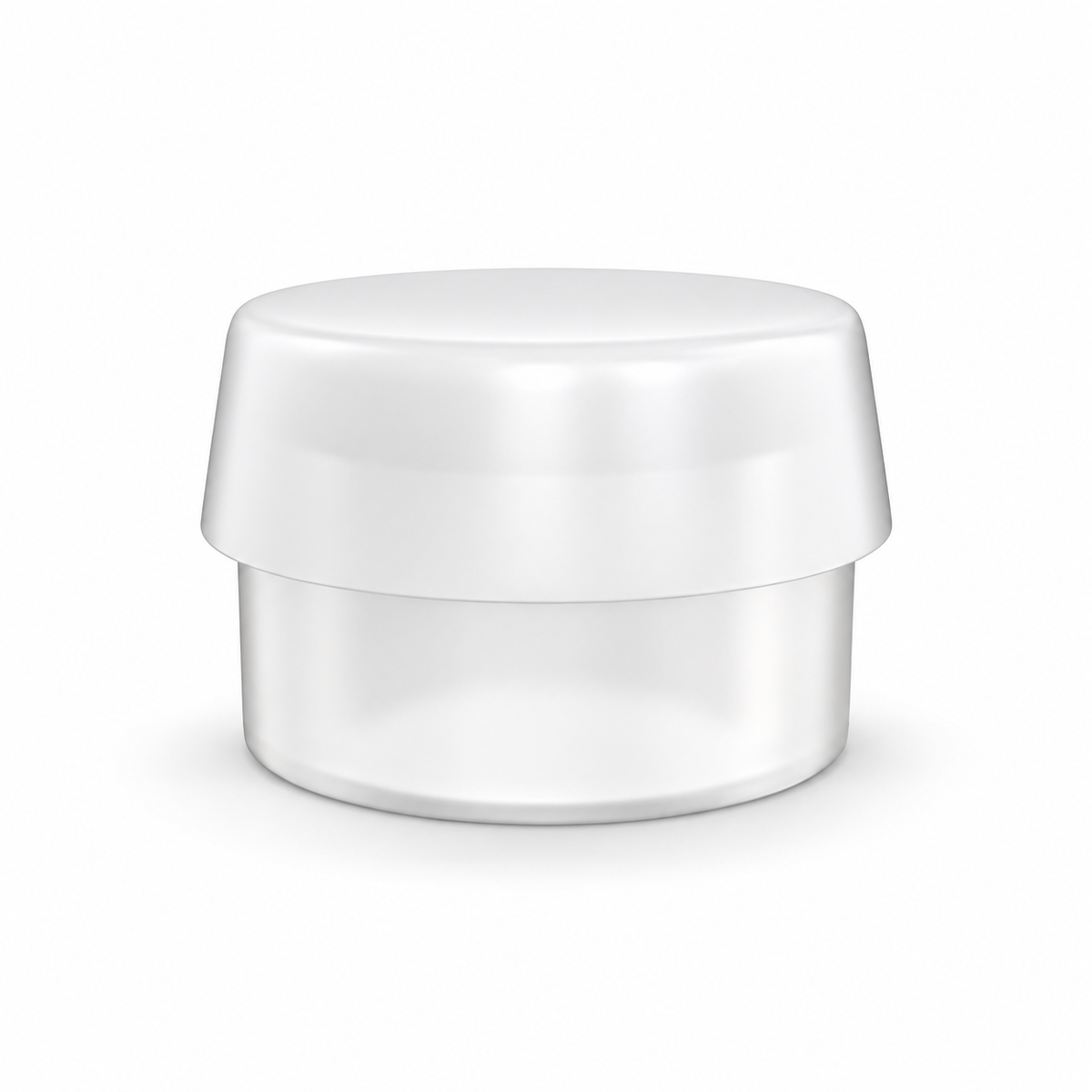

- Lab Use: No Retention
Key Features
- Complete Premium Kit: Includes the Straight Ball Attachment, Metal Housing, Protective Disc, and four Retentive Caps for a complete overdenture workflow.
- Multiple Retention Levels: Includes 500G, 900G, 1300G, and Lab Use no-retention caps to accommodate different restorative requirements.
- Conical Connection Hex 2.25mm: Precision-engineered for a secure and stable connection with compatible Narrow Platform conical connection implant systems.
- Ø2.5mm Ball Diameter: Provides consistent overdenture retention while supporting convenient prosthetic maintenance.

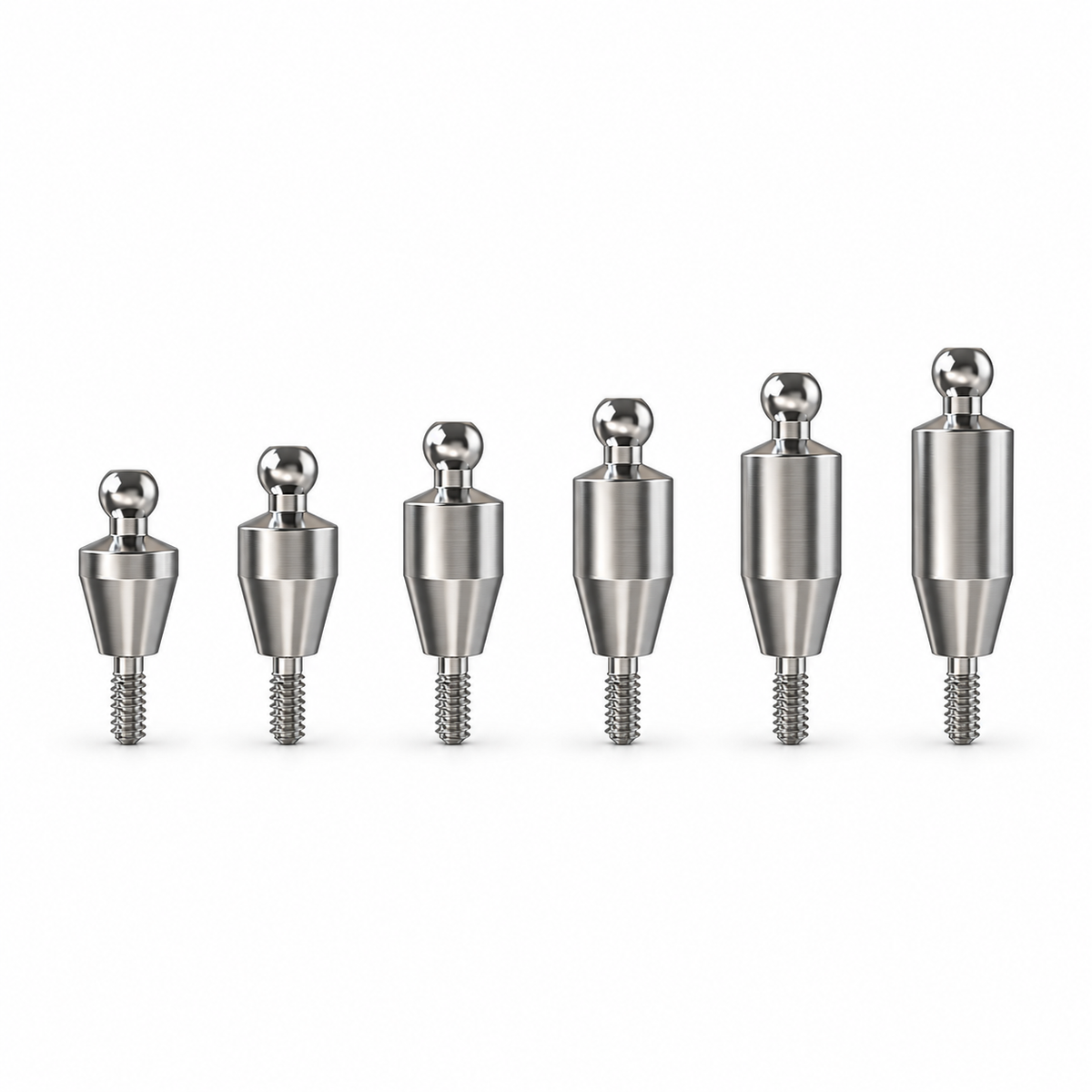

- Six Height Options: Available in 1.0mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm, and 6.0mm to accommodate different soft-tissue conditions.

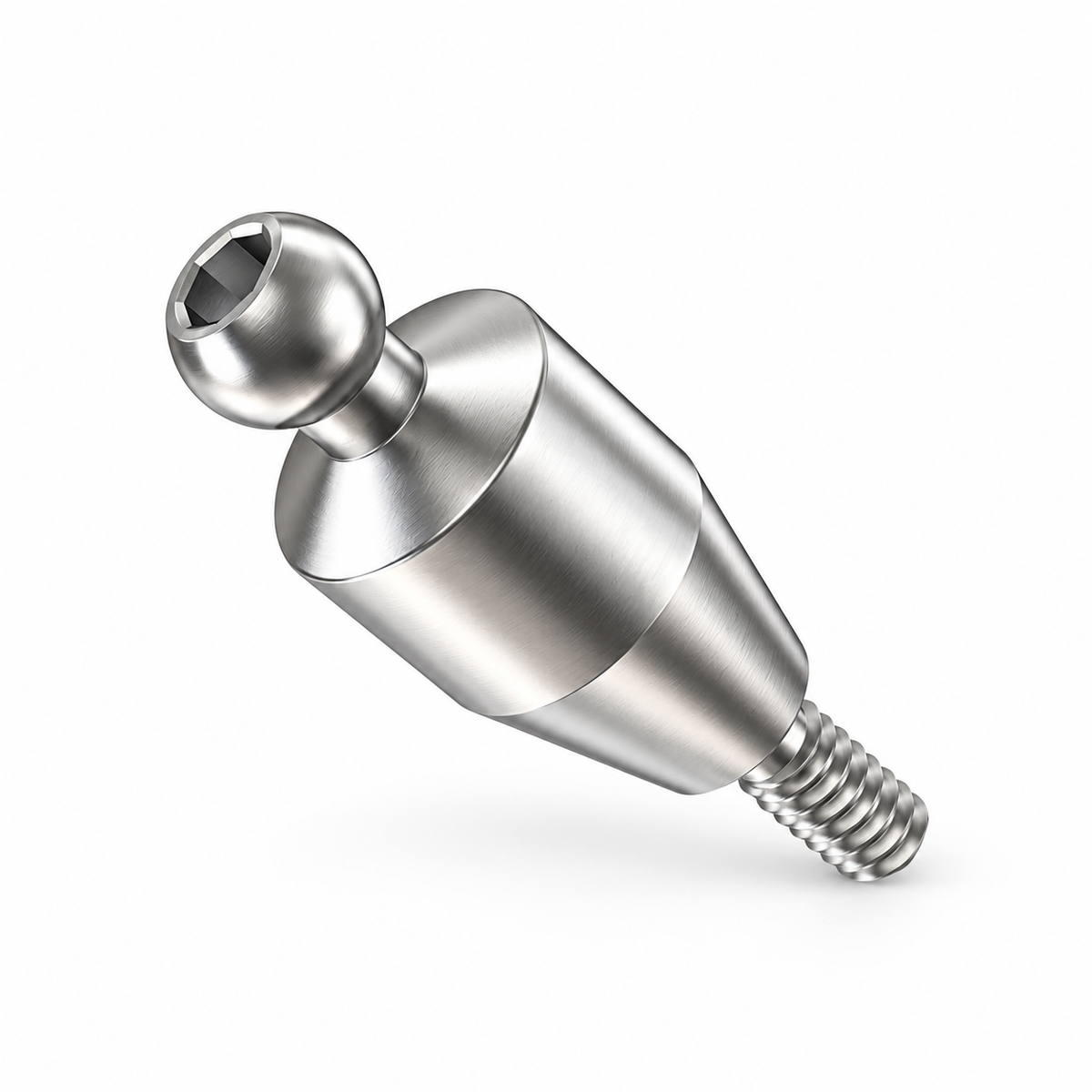

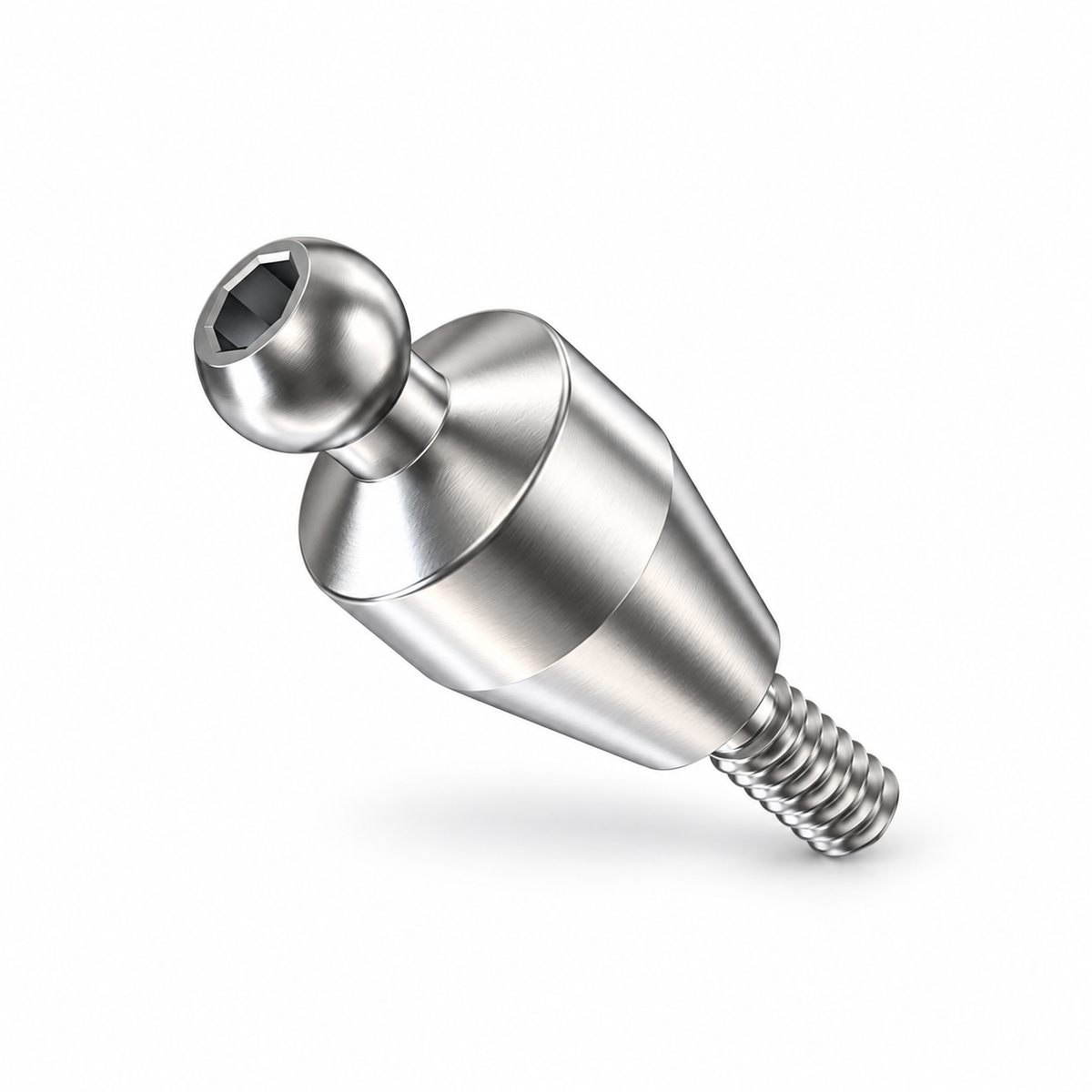

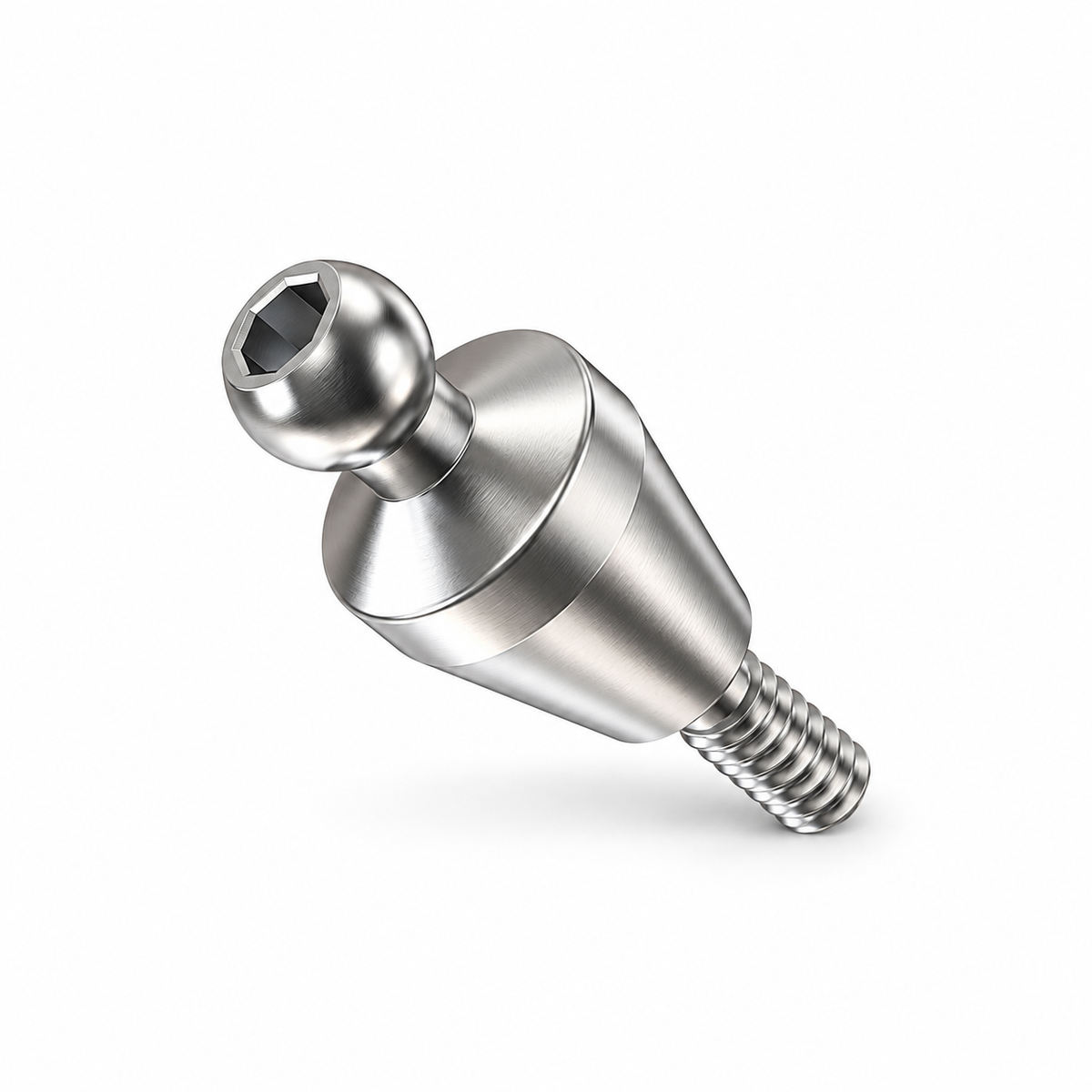

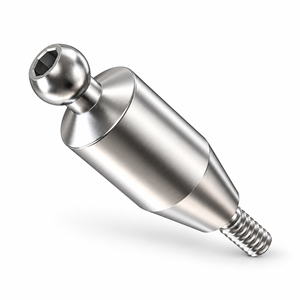

- Integrated Design: One-piece structure with built-in screw helps provide precise seating and minimizes the number of separate prosthetic components.
- Titanium Grade 5 Construction: Provides excellent strength, durability, corrosion resistance, and biocompatibility.
Warranty
GDT Supply USA ensures the quality and reliability of every product. All dental implants are protected by a lifetime warranty, and all implant prosthetic components by a 10-year warranty. Each product is traceable by reference and batch number.
